LS02 - MiniLux HR

DETAILS

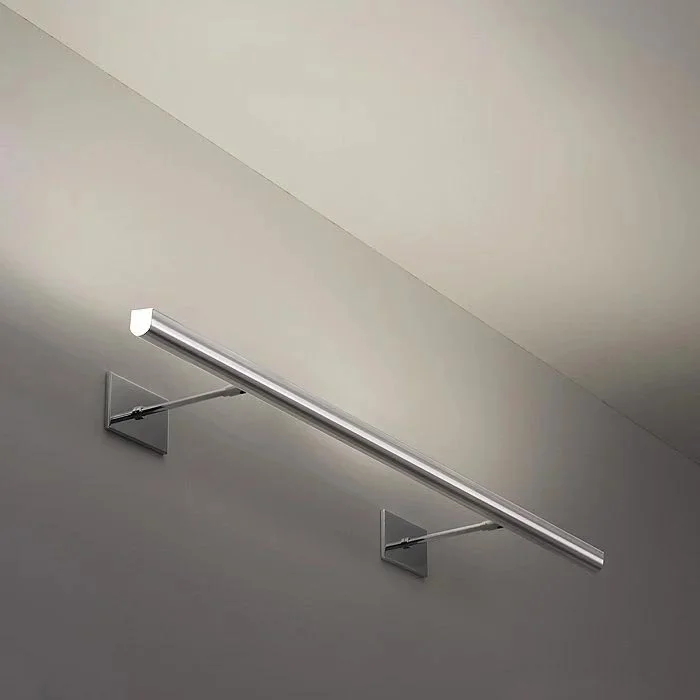

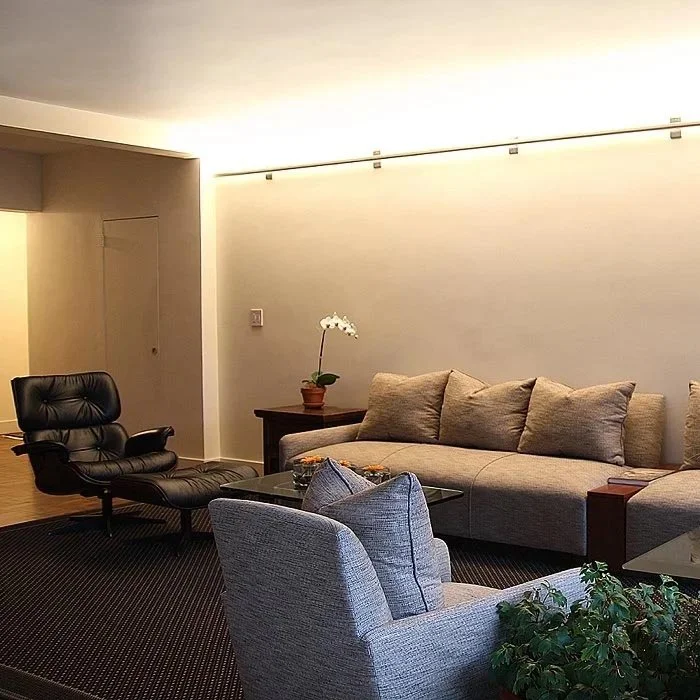

  • Wall or Cabinetry-mounted sconce up-light

  • Minilux HR = “Half Round” extrusion shape. Same size as the SQ shape but with a half-rounded side. [Consider using our AL03 HRL fixture, when glare might be a concern]

  • Any length [fixture must be 12” long minimum]

  • 110/120 Line Voltage - no transformer or driver necessary

  • Dimmable

  • ETL Approved to meet UL Standards

DIMENSIONS

Length:

  • Any length [fixture must be 12” long minimum]

  • Please specify in units-of-an-inch [lengths over 12 feet will require a discreet seam]

Projection:

  • Standard: 2”, 6”, 10” and 16” stems (overall projection is about 2” greater)

  • Custom stems are available with an up-charge (with all mountings, except MM02)

  • 16” is one of our standard size stems - and it is the biggest projection (the longest cantilever) we make. Fixtures with larger size projections, when viewed from the side, may show a small-but-noticeable deviation from horizontal. This is to be expected when using long cantilevers.

LIGHT SOURCES

LED boards (Close to zero UV)

  • 14 Watts 1200 Lumens (per foot diffused optic)

  • Color Temperature: 2700K -or- 3000K 95 CRI

  • 120 Volts Dimmable ETL Approved

  • These LEDs operate on 110/120 line voltage, and no separate driver or transformer is needed.

LED lamps (Close to zero UV)

  • 6 Watts 75 Watt incandescent equivalent 900 lumens (each lamp)

  • Color Temperature: 2700K -or- 3000K 80+ CRI

  • Base: Bayonet, double-contact base, BA15d

  • 120 Volts - Dimmable ETL Approved

  • Note: Lamps are usually spaced approximately 12” apart

  • These LEDs operate on line voltage, and NO separate driver or transformer is needed.

JD Krypton lamps (Blocks UV)

  • 20, 40, or 60 Watts (each lamp)

  • Base: Bayonet, double-contact base, BA15d

  • 120 Volts

  • Note: Lamps are usually spaced approximately 12” apart

JD Halogen lamps

  • 50 or 75 Watts (each lamp)

  • Base: Bayonet, double-contact base, BA15d

  • 130 Volts

  • Note: Lamps are usually spaced approximately 12” apart

NOTE: Fixtures are provided with a set of lamps (or - if specified or integral to the fixture’s design - with LEDs) as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.

STANDARD FINISHES

CUSTOM FINISHES

Want a custom color? We offer powder coat finishes from TIGER Drylac in any RAL color to meet your specific requirements. Custom finishes are available for an additional charge and require an 8-10 week lead time. Contact our sales team for details.

MOUNTING METHODS

Modulightor light fixtures are renowned for their sleek designs and versatile lighting solutions, making them a popular choice for both residential and commercial environments. A key aspect of their adaptability lies in the variety of mounting methods available, which allow these fixtures to seamlessly integrate into diverse architectural settings - both new and existing.

Whether the goal is to achieve a minimalist ceiling installation, highlight architectural features with wall mounting, or incorporate lighting into custom millwork, the right mounting technique plays a crucial role in the overall success of the lighting design. The following options are available for this fixture:

Hard-Wired with a Plate

MM01A (screws visible)

MM01B (no screws visible) – the most specified mounting

Plugged into an Outlet

MM02 (wall-mounted arm or arms)



Through a new or existing Millwork Fascia

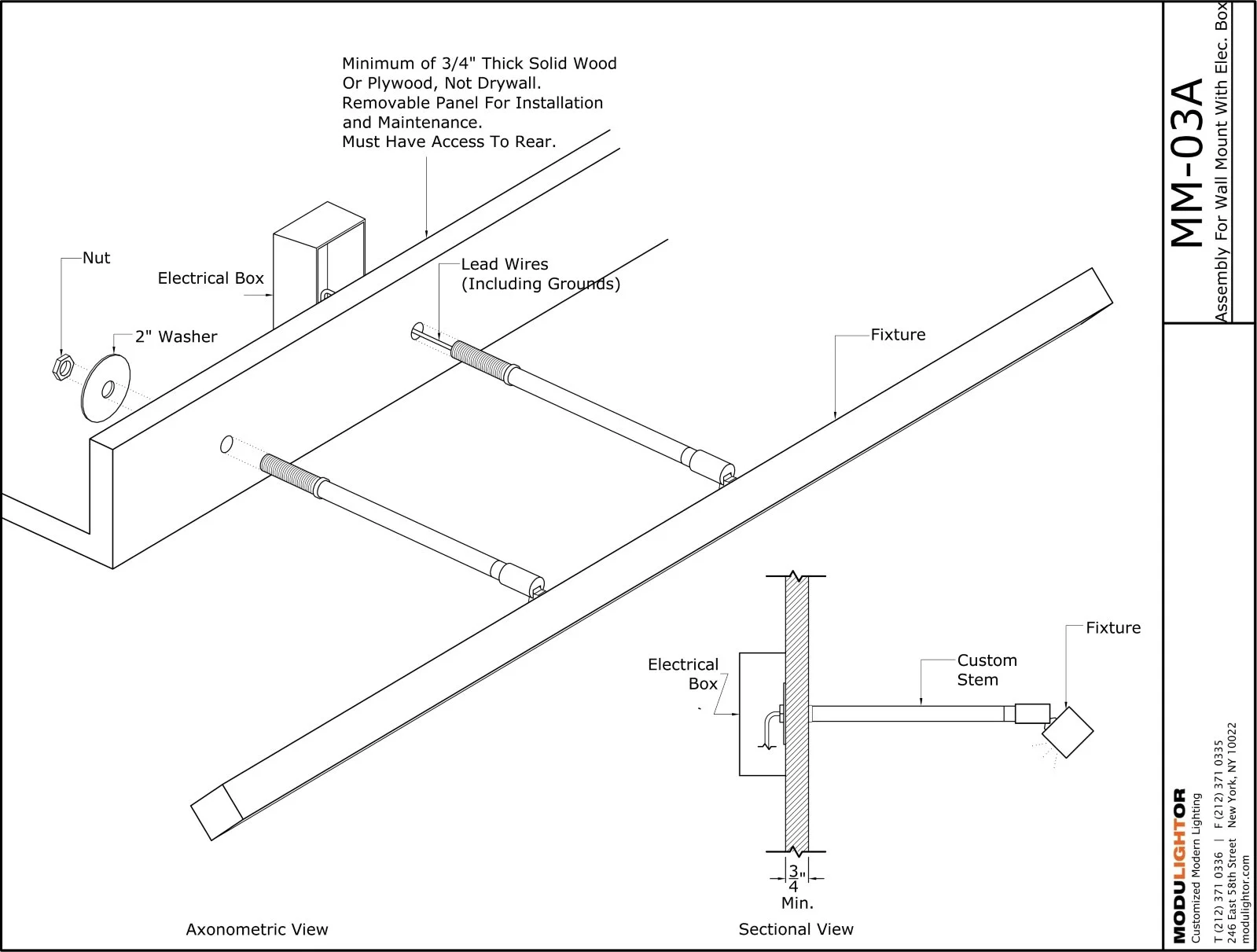

MM03A (hardwired)

MM03B (plugged in)

Over or Under an Existing Shelf

MM04A (multiple stems)

MM04B (single stem)

NOTE: Fixtures will be provided for installation with normal mounting conditions. It is the customer’s responsibility to verify that they have selected a fixture and mounting method which complies with local codes (L.A.H.J.) and that they are installing the fixture in an approved manner.
