SCONCES
SC123

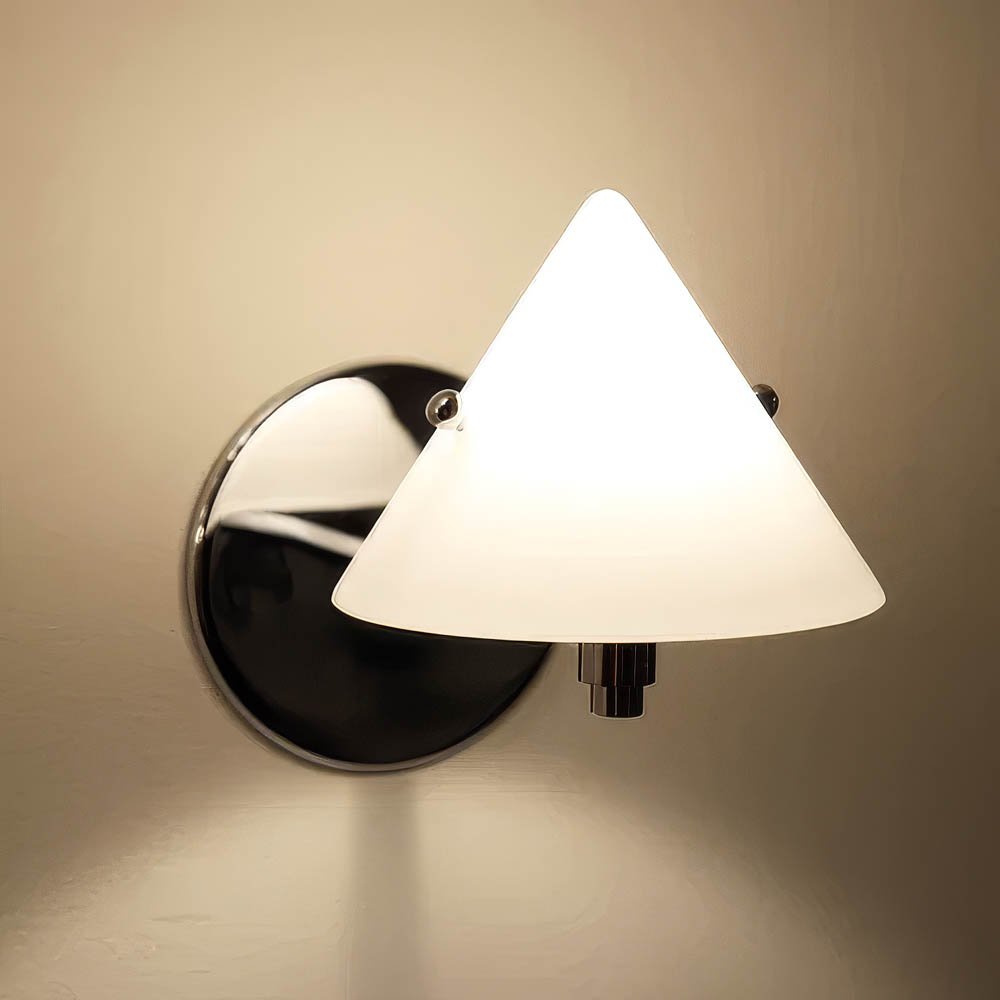

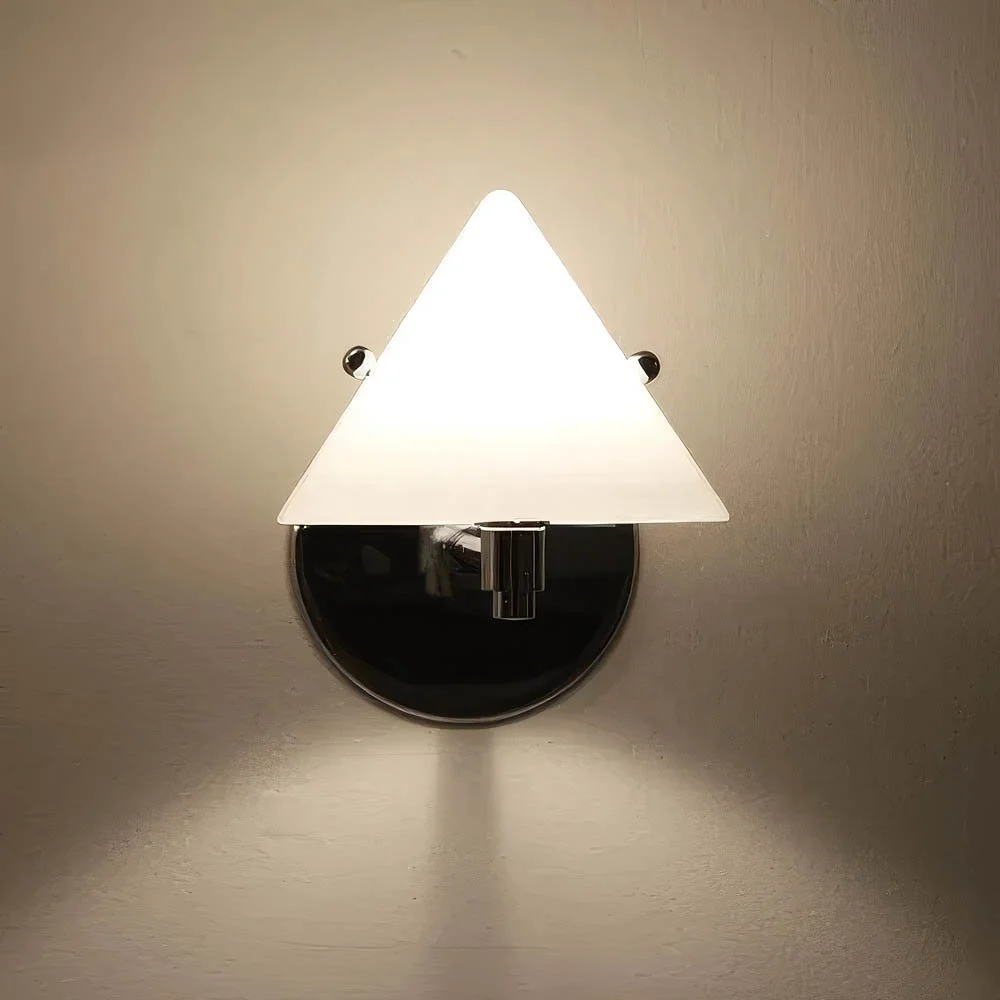

Wagram “Banderola”
DIFFUSED LIGHT SCONCE
Frosted Cone is elegantly geometric—and emits soft, abundant light
Wall or cabinetry mounted
120 Volts, Line Voltage
Dimmable
ETL Approved to meet UL Standards
SIZES

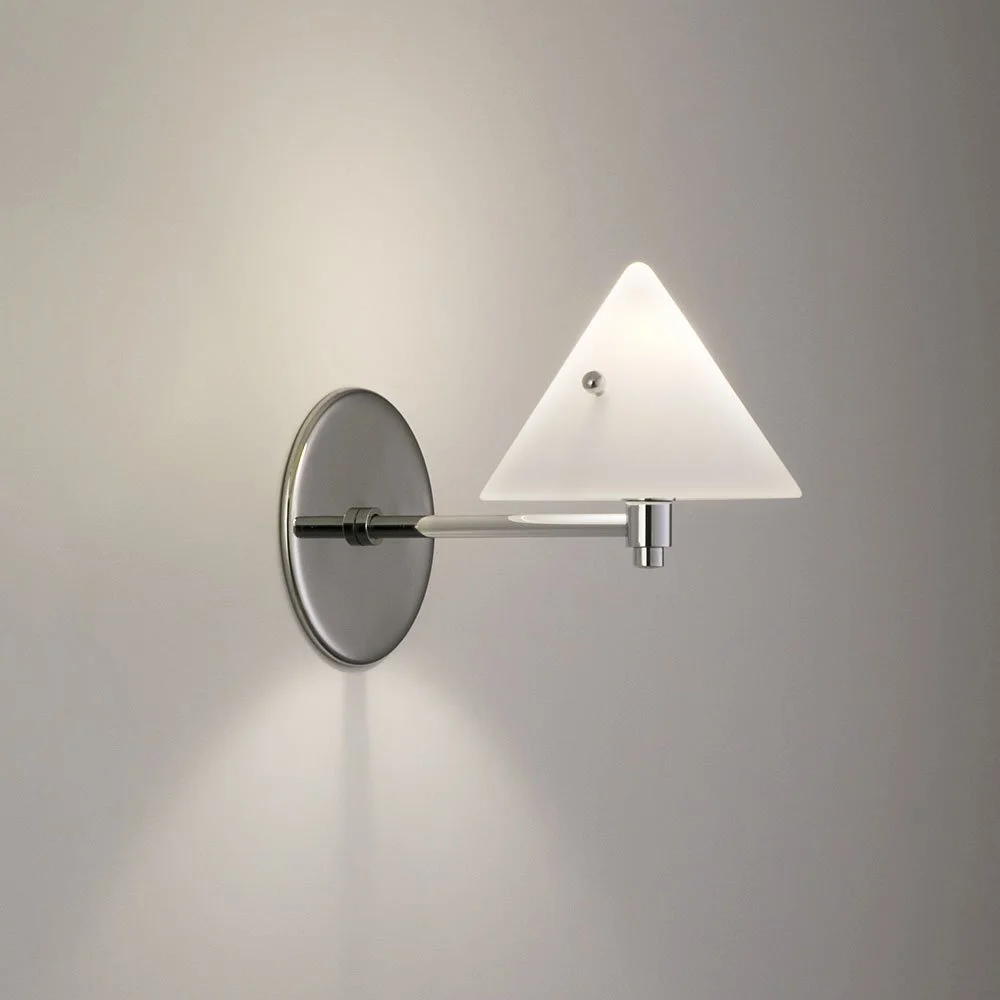

Protrusion: standard protrusions is approximately 6” [Custom protrusions available with an upcharge.]
Glass Size: each Wagram glass cone-like “head” is approximately—
Diameter: 5-1/8”
High: 3-7/8”
LIGHT SOURCES
JCD Halogen lamp (one needed)
Base: Bi-pin, GY6.35
120 Volts
50 or 75 Watts (each lamp)
No transformer necessary
LED lamps may be available — Check with us for availability.
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (hardwired, with screws visible)
MM01B (hardwired, with No screws visible) – the most typically specified mounting
MM02 (on wall-mounted arm, plugged into outlet)
MM03A (through a millwork fascia, hardwired)
MM03B (through a millwork fascia, plugged in)
MM04B (over or under a fixed shelf, with a single stem)
