SCONCES
SC87
Bullet 3 (Small)
DOWN OR UP DOUBLE SPOT-LIGHT
Wall -or- Cabinet Mounted
Arm angle is adjustable—and may be set on-site
120 Volts, Line Voltage
Double Bullets allow for maximum light—great for use over a work surface, or above shelves

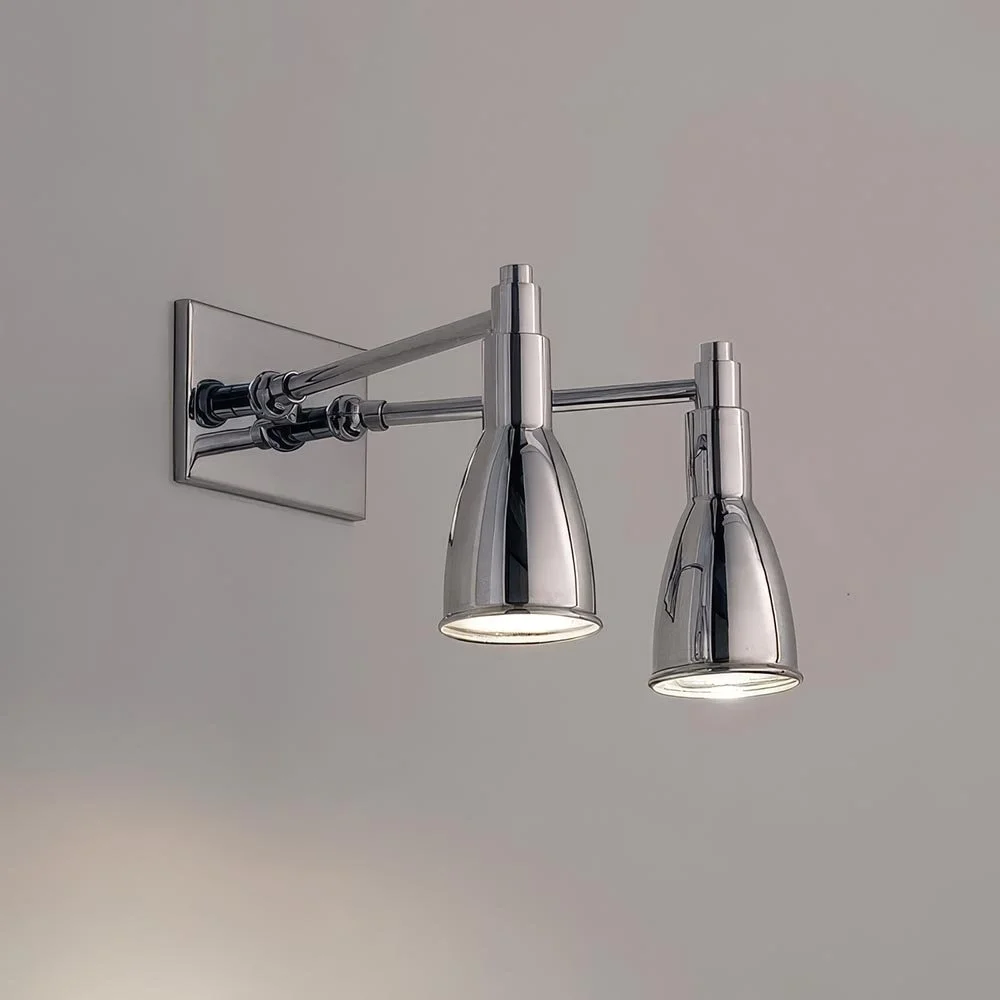

Small Bullet is shown in main photo—but our Medium [elongated] Bullet or our Large Bullet can also be used in this fixture
No transformer or driver necessary for most lamp choices
Dimmable
SIZES
Small Bullet: 2-3/8” diameter x 2-7/8” long
LIGHT SOURCES
Not all lamps can be used for all Bullet sizes — See notes at each lamp to determine which lamps apply.
The larger the bullet, the easier it is to change the lamp.
LED lamp
SORAA “Brilliant”’
Base: GU10
MR16
60 degree Flood
120 Volts
7.5 Watts
Color Temperature: 2700K
This LED lamp operates on line voltage, and NO separate driver or transformer is needed!
LED lamp
SORAA “Brilliant”’
Base: Bi-pin
MR16
60 degree Flood
120 Volts
7.5 Watts
Color Temperature: 2700K
This LED lamp operates on line voltage, and NO separate driver or transformer is needed!
Halogen lamp (two needed)
Base: GU10
MR-16
Flood
120 Volts
50 Watts
No transformer necessary
Halogen lamp (two needed)
Base: Bi-pin
MR-16
Flood
120 Volts
50 Watts
No transformer necessary
[THIS LAMP FOR USE WITH: Large, Medium, and Small Bullets]
Halogen lamp (two needed)
Base: GU-10
MR-11
Flood
120 Volts
20 Watts
No transformer necessary
[THIS LAMP FOR USE WITH: Large, Medium, and Small Bullets]
Halogen lamp (two needed)
JCD
Base: Bi-pin, GY6.35
120 Volts
20, 35, 50 or 75 Watts (each lamp)
No transformer necessary
[THIS LAMP FOR USE WITH: Large, Medium, and Small Bullets]
Halogen lamp (two needed)
JD
Base: Bayonet, double-contact base, BA15d
130 Volts
50 or 75 Watts (each lamp)
No transformer necessary
[THIS LAMP FOR USE WITH: Large, Medium, and Small Bullets]
Krypton lamp (two needed)
JD
Base: Bayonet, double-contact base, BA15d
120 Volts
40 or 60 Watts (each lamp)
No transformer necessary
[THIS LAMP FOR USE WITH: Large, Medium, and Small Bullets]
Halogen lamp (two needed
Base: Bayonet socket, Double-Contact
PH20 (Philips “Halotone” Aluminum Reflector Lamp)
12Volts
20 Watts
Transformer necessary
[THIS LAMP FOR USE WITH: Large, Medium, and Small Bullets]
Halogen lamp (two needed)
Base: Bi-pin
MR-8
Narrow Beam
12Volts
35 Watts
Transformer necessary
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01C (protruding on stems, and hardwired through stems—with center screw [“modern cap”] visible)
