SCONCES
SC97

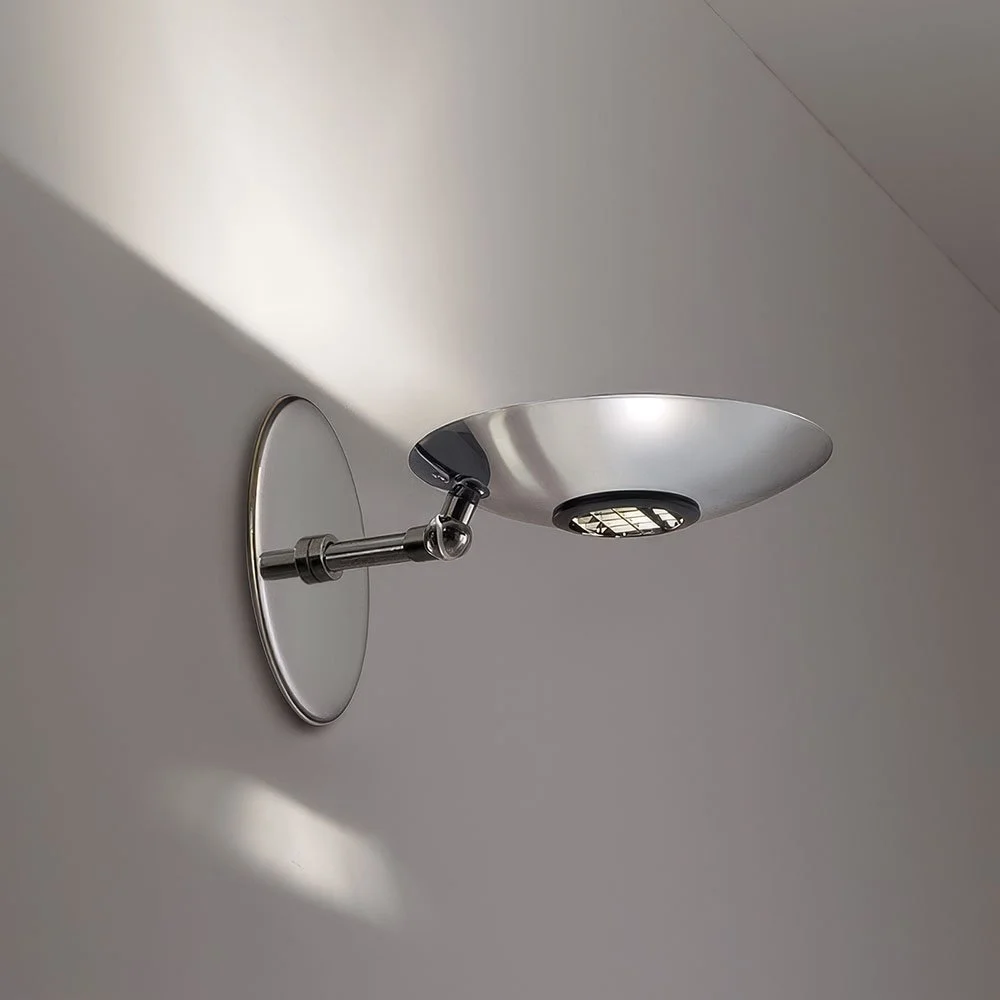

Coupola Up & Down
Wall or cabinetry mounted
Elegantly shallow “domelike” bowl sends light upward—and also downward though a louvered central ring
NO transformer necessary
Dimmable
ETL Approved to meet UL Standards
SIZES
Protrusion: standard protrusions are approx. 8” (typical), or approximately 12"
NOTE: Custom protrusions are available with an upcharge.
Width: approximately 6-1/2”
Height: approx. 1-1/4” (the height of protruding component); but the height of the plate (at the wall) will depend on the shape and orientation of the plate that is chosen
LIGHT SOURCES
J Halogen
Base: T3, Double-ended
120 Volts
150 Watts
No transformer necessary
LED lamps may be available — Check with us for availability.
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (protruding on an arm, and hardwired through arm—with screws visible)
MM01B (protruding on an arm, and hardwired through arm—with No screws visible) – the most typically specified MM03A (through a millwork fascia, hardwired)
MM03B (through a millwork fascia, plugged in) mounting
