ALO1 - Minilux SQ

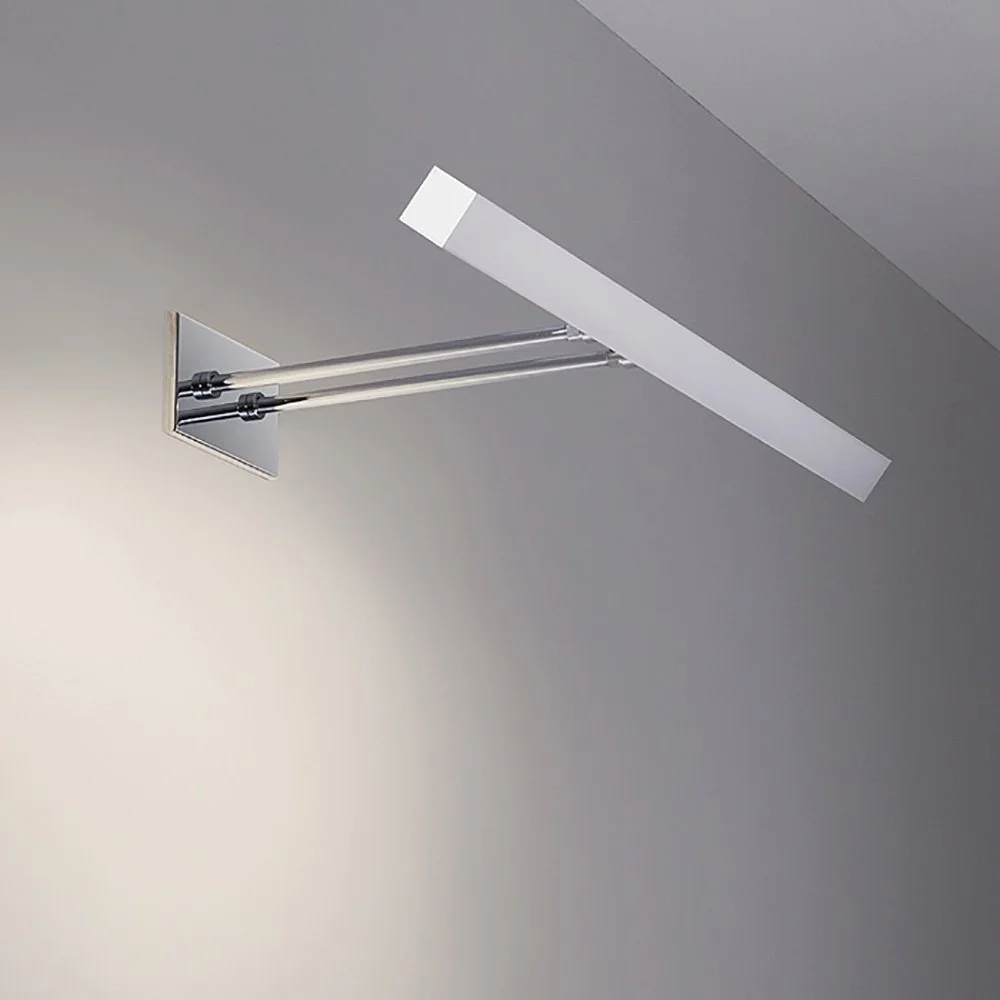

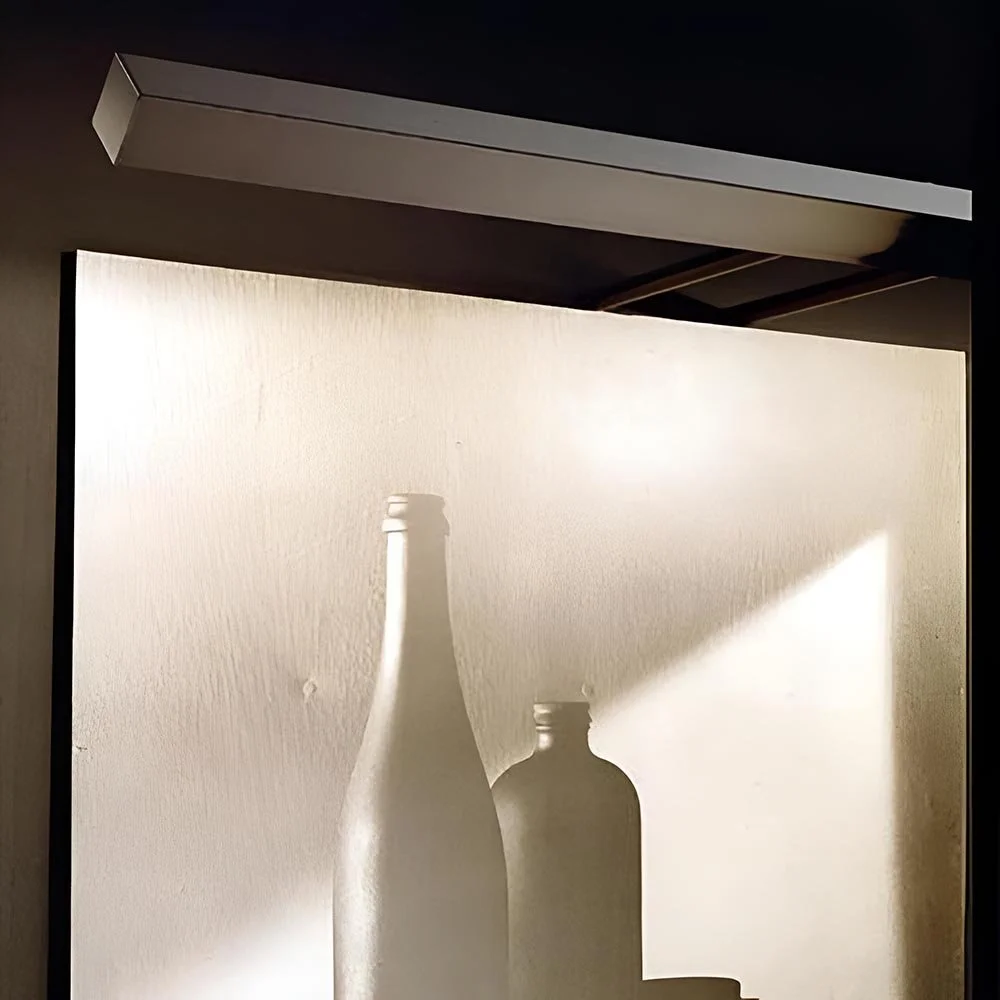

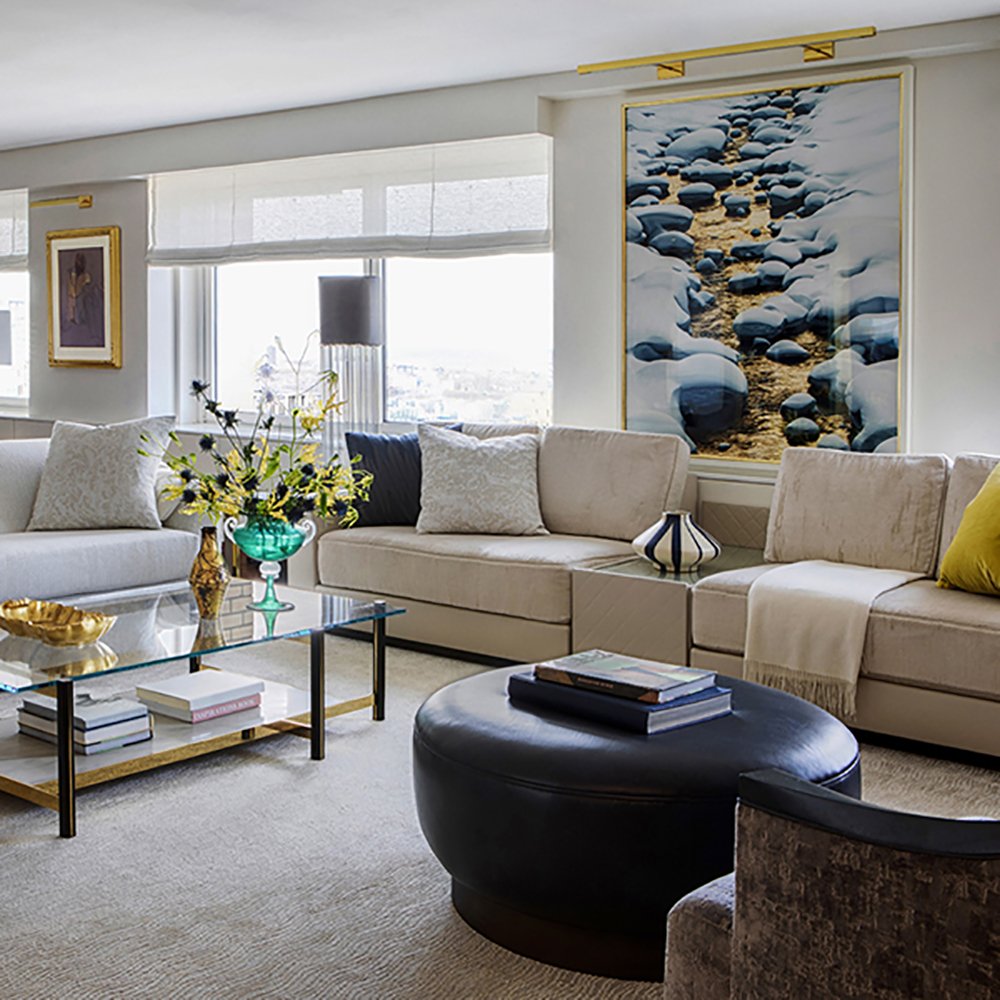

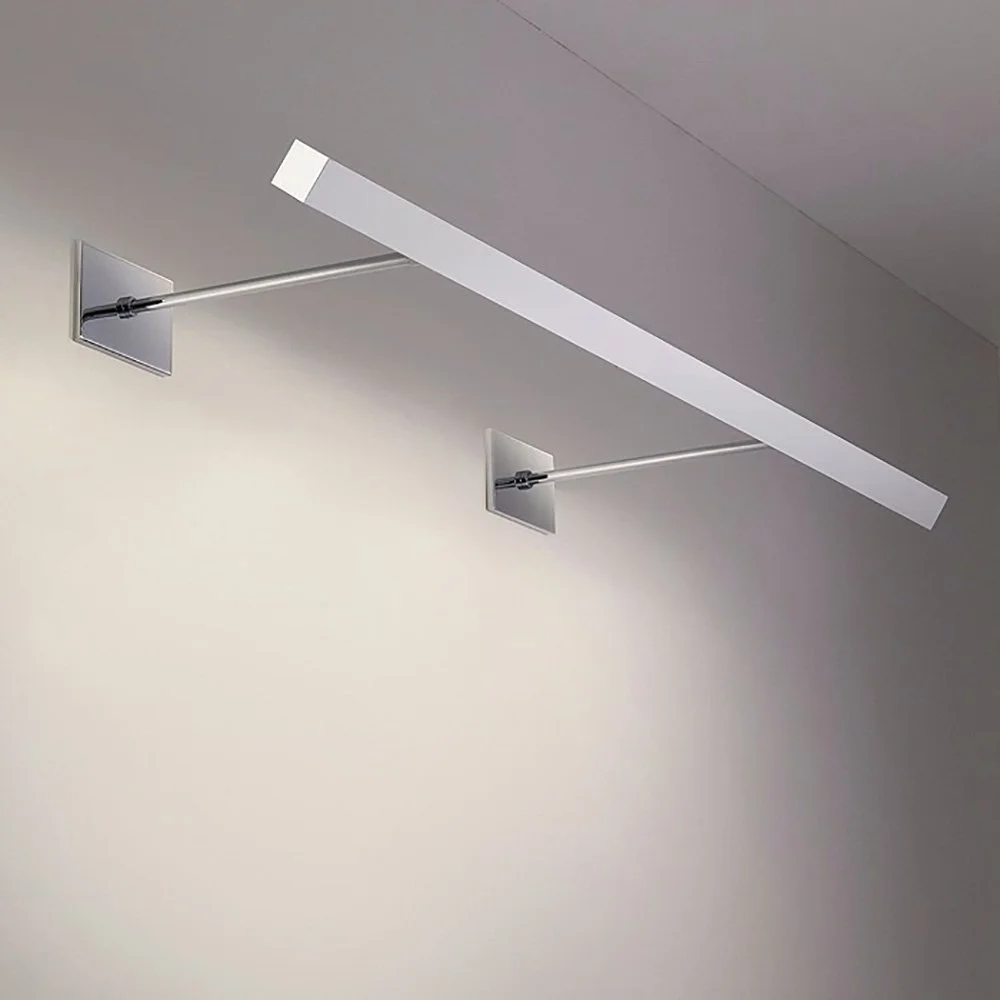

Modulightor’s Minilux art lights are linear sconces that project from the wall or cabinetry to create a smooth and bright wash of dimmable down light. The fixture uses line voltage so no transformer is necessary. If the fixture is mounted under a ceiling it would be called a wall washer but they are essentially the same idea. Both types can be used to highlight individual art pieces, walls with art collections, or any wall with soft, indirect illumination. Modulightor art lights and wall washers are bright with a warm color temperature, providing a lot of light for a specific need or dimmable down to a sensuous glow. The fixtures work with smart controls or wall switches.

Along with the swivel that allows for the light to be directed on site, there are three standard stem lengths in addition to custom stems for a perfectly tailored projection from the wall or cabinetry. Come visit the Modulightor showroom to see how projection impacts light quality.

DETAILS

  • Wall mounted

  • Minilux SQ = “Square” extrusion shape

  • Any length

  • No transformer or driver necessary

  • Dimmable

  • ETL Approved to meet UL Standards

DIMENSIONS

Length:

  • Any length

  • Please specify in units-of-an-inch [Note: lengths over 12 feet will require a discrete seam]

Drop:

  • Standard Drops: No stem, swivel only, 2”, 6”, 10”, 16” stem

  • Custom Drops are available with an up-charge

LIGHT SOURCES

LED boards (Close to zero UV)

  • 14 Watts 1200 Lumens (per foot diffused optic)

  • Color Temperature: 2700K -or- 3000K 95 CRI

  • 120 Volts Dimmable ETL Approved

  • These LEDs operate on line voltage and NO separate driver or transformer is needed!

LED lamps (Close to zero UV)

  • 6 Watts 75 Watt incandescent equivalent 900 lumens (each lamp)

  • Color Temperature: 2700K -or- 3000K 80+ CRI

  • Base: Bayonet, double-contact base, BA15d

  • 120 Volts - Dimmable ETL Approved

  • Note: Lamps are usually spaced approximately 12” apart

  • These LEDs operate on line voltage and NO separate driver or transformer is needed!

JD Krypton lamps (Blocks UV)

  • 20, 40, or 60 Watts (each lamp)

  • Base: Bayonet, double-contact base, BA15d

  • 120 Volts

  • Note: Lamps are usually spaced approximately 12” apart

JD Halogen lamps

  • 50 or 75 Watts (each lamp)

  • Base: Bayonet, double-contact base, BA15d

  • 130 Volts

  • Note: Lamps are usually spaced approximately 12” apart

NOTE: Fixtures are provided with a set of lamps (or - if specified or integral to the fixture’s design - with LEDs) as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.


MOUNTING METHODS

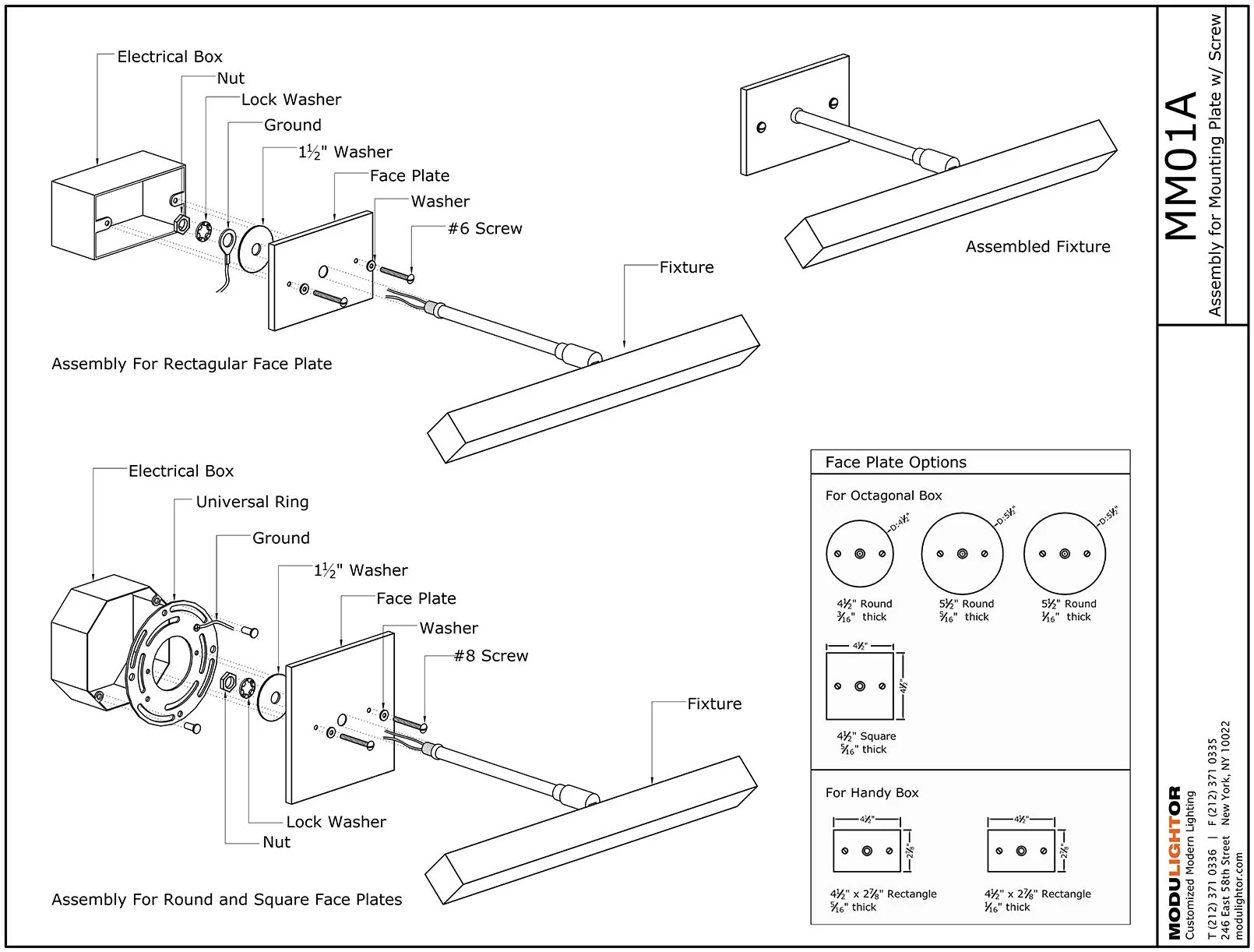

  • MM01A (hardwired, with screws visible)

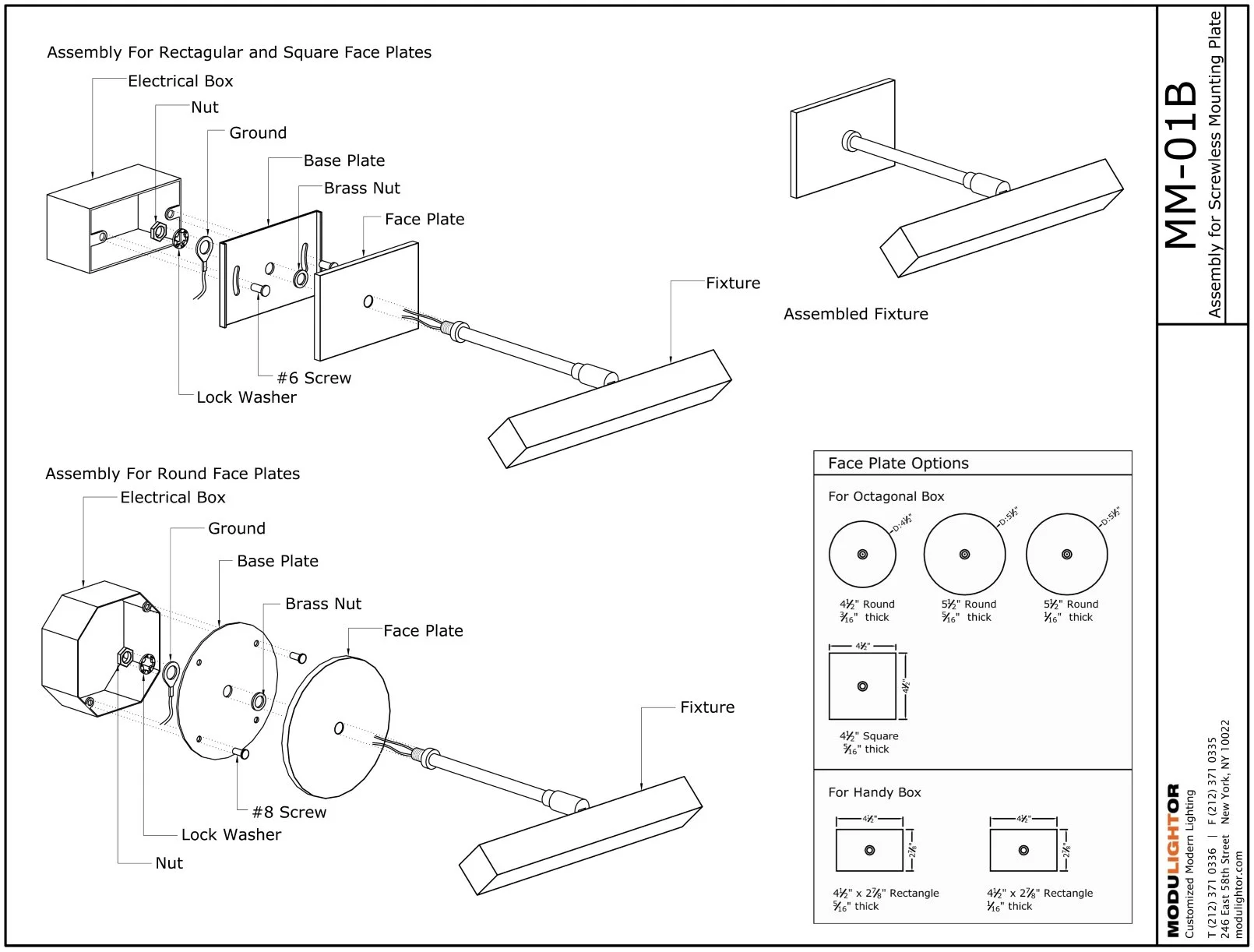

  • MM01B (hardwired, with No screws visible) – the most typically specified mounting

  • MM02 (on wall-mounted arm(s), plugged into outlet)

  • MM03A (through a millwork fascia, hardwired)

  • MM03B (through a millwork fascia, plugged in)

  • MM04A (over or under a fixed shelf, with multiple stems)

  • MM04B (over or under a fixed shelf, with a single stem)

STANDARD FINISHES

CUSTOM FINISHES

Want a custom color? We offer powder coat finishes from TIGER Drylac in any RAL color to meet your specific requirements. Custom finishes are available for an additional charge and require an 8-10 week lead time. Contact our sales team for details.
