AL92 - Double Pipette

DETAILS

• The fixture has two pipette bulb enclosures: each can be rotated, so the angle of light is adjustable

• Not for use over mirrors — Instead, see our Vanity Light VL11

• Overall width: 11-1/8”

• No transformer or driver is necessary

• Dimmable

• ETL Approved to meet UL Standards

NOTE: This is a special purpose light fixture, which requires it being installed above the reach of individuals. The fixture is sold subject to it being installed at a height which maintains that condition, and it is the owner's responsibility to verify and maintain that condition.

DIMENSIONS

Overall Width: 11-1/8"

Protrusion:

• Standard protrusions are 6”, 10” and 16” stems

• Custom protrusions are available with an up-charge (for all mountings except MM02)

LIGHT SOURCES

JCD Halogen lamp

• Base: Bi-pin, GY6.35

• 120 Volts

• 20, 35 or 50 Watts (each lamp)

• No transformer necessary

LED lamps (Close to zero UV)

• 6 Watts 75 Watt incandescent equivalent 900 lumens (each lamp)

• Color Temperature: 2700K -or- 3000K 80+ CRI

• Base: Bayonet, double-contact base, BA15d

• 120 Volts - Dimmable ETL Approved

• Note: Lamps are usually spaced approximately 12” apart

• These LEDs operate on line voltage and NO separate driver or transformer is needed!

JD Krypton lamps (Blocks UV)

• 20, 40, or 60 Watts (each lamp)

• Base: Bayonet, double-contact base, BA15d

• 120 Volts

• Note: Lamps are usually spaced approximately 12” apart

JD Halogen lamps

• 50 or 75 Watts (each lamp)

• Base: Bayonet, double-contact base, BA15d

• 130 Volts

• Note: Lamps are usually spaced approximately 12” apart

NOTE: Fixtures are provided with a set of lamps (or - if specified or integral to the fixture’s design - with LEDs) as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.

MOUNTING METHODS

Modulightor light fixtures are renowned for their sleek designs and versatile lighting solutions, making them a popular choice for both residential and commercial environments. A key aspect of their adaptability lies in the variety of mounting methods available, which allow these fixtures to seamlessly integrate into diverse architectural settings - both new and existing.

Whether the goal is to achieve a minimalist ceiling installation, highlight architectural features with wall mounting, or incorporate lighting into custom millwork, the right mounting technique plays a crucial role in the overall success of the lighting design. The following options are available for this fixture:

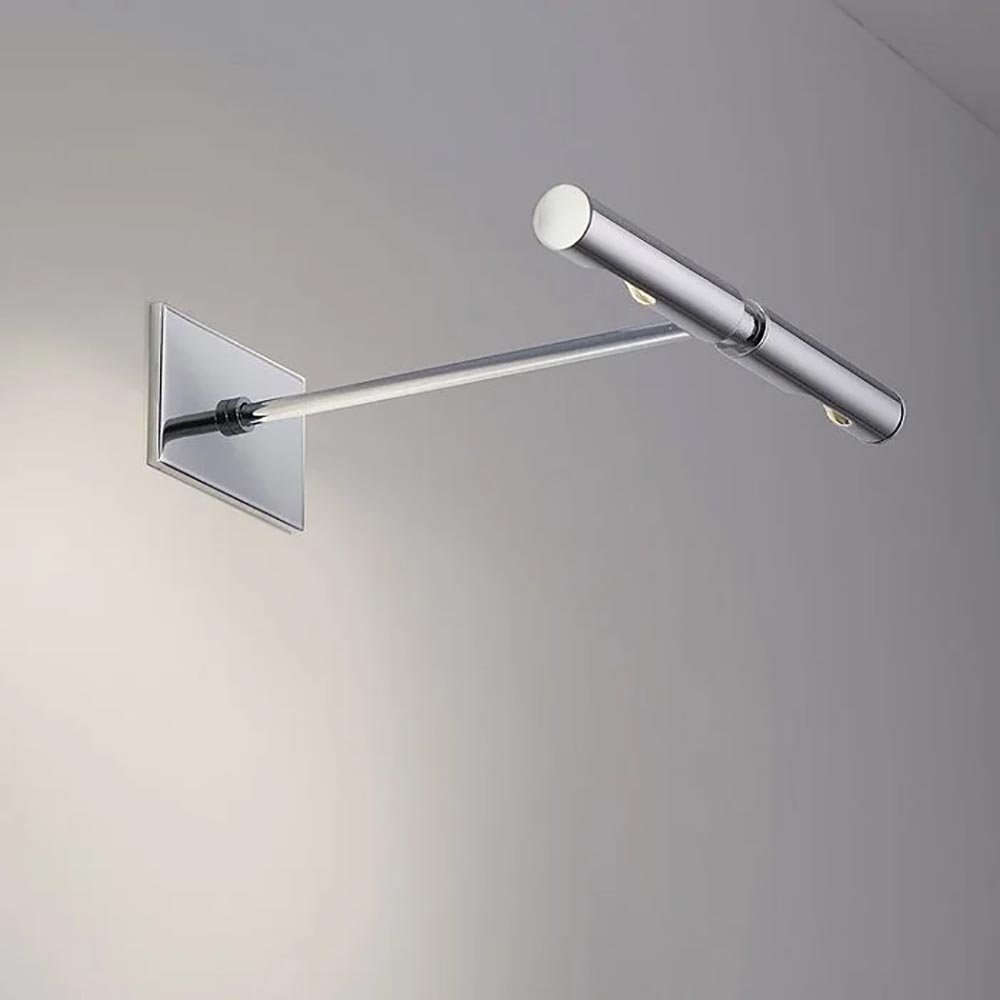

Hard-Wired with a Plate

Plugged into an Outlet

Through a new Millwork Fascia

Over or Under an Existing Shelf

STANDARD FINISHES

CUSTOM FINISHES

Want a custom color? We offer powder coat finishes from TIGER Drylac in any RAL color to meet your specific requirements. Custom finishes are available for an additional charge and require an 8-10 week lead time. Contact our sales team for details.

DOWNLOADS
