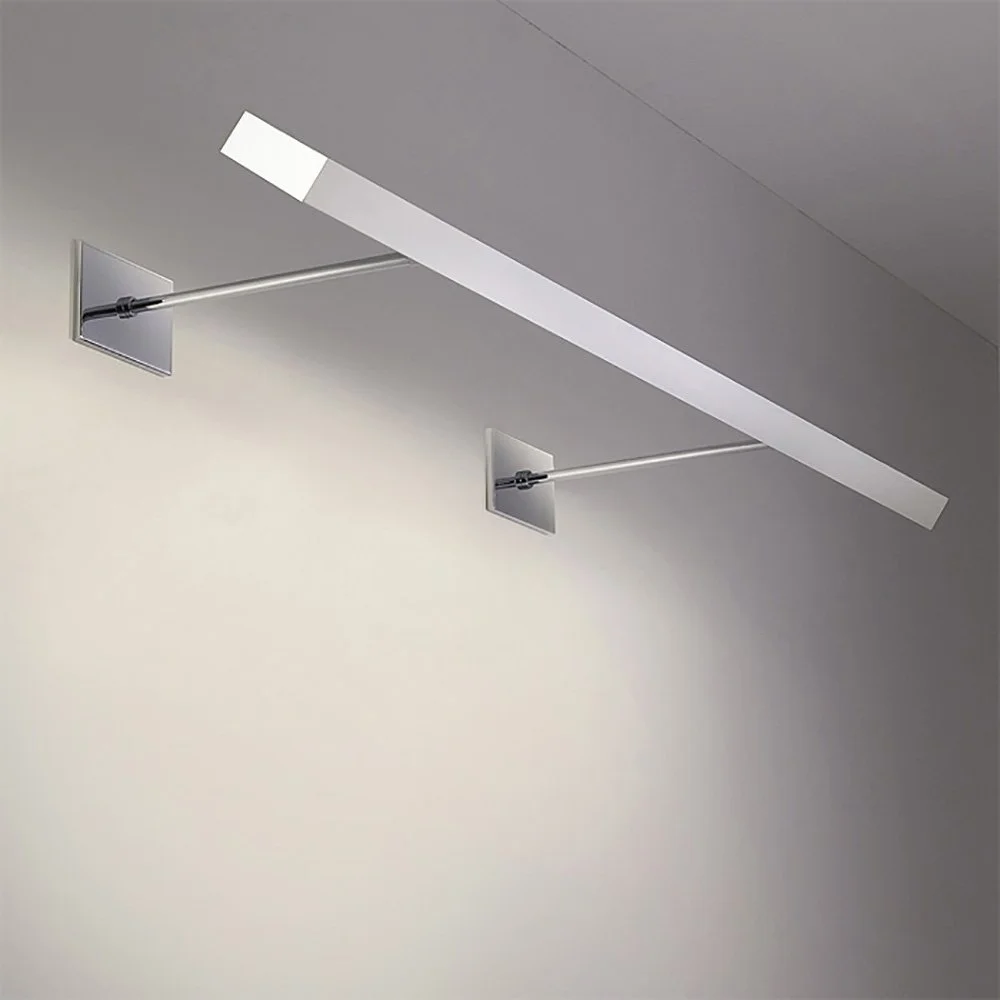

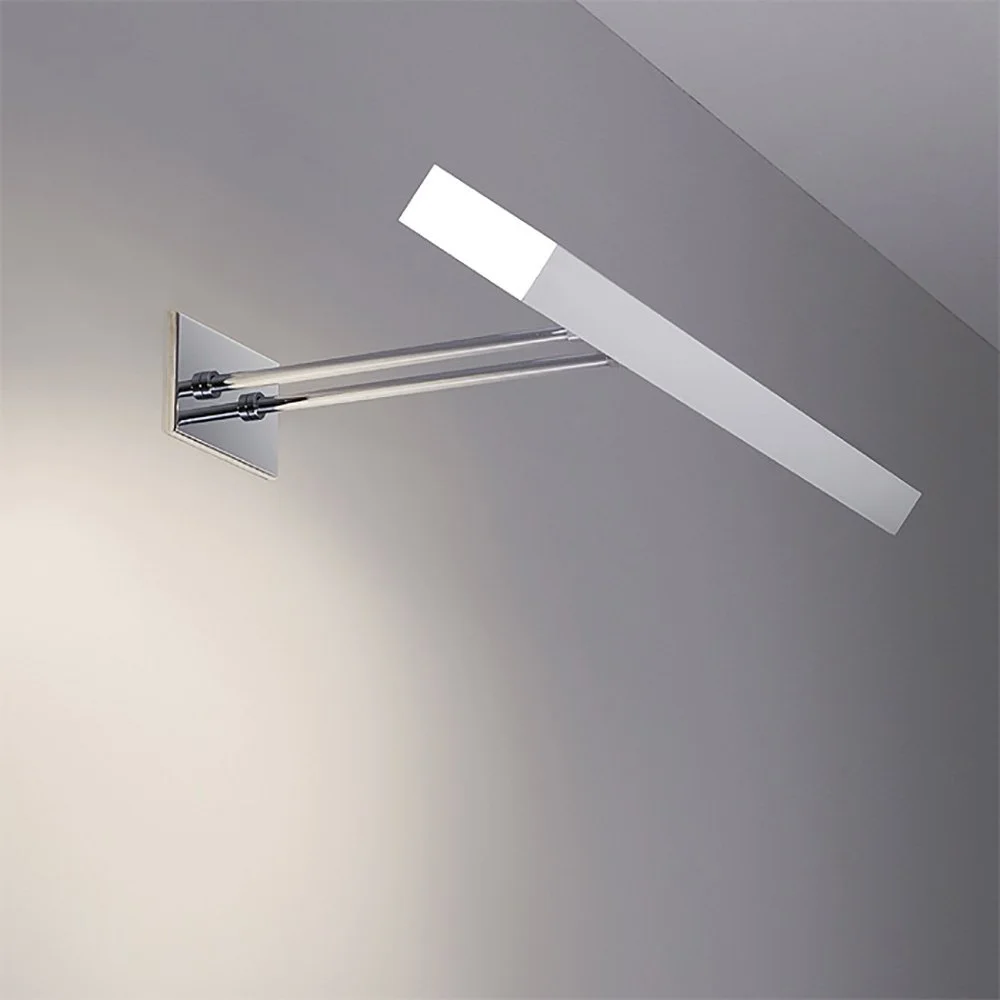

ALO4 - Luxline


WALL MOUNTED

  • Luxline = “Rectangle” extrusion shape [Consider using our AL03 HRL fixture, when glare might be a concern]

  • Not for use over mirrors — Instead, see our Vanity Light VL11

  • Any length

  • No transformer or driver necessary

  • Dimmable


SIZES

Length:

  • Any length

  • Please specify in units-of-an-inch [Note: lengths over 12 feet will require a discrete seam]

Drop:

  • Standard Drops: No stem, swivel only, 2”, 6” stem


LIGHT SOURCES

LED lamps (Close to zero UV)

  • 6 Watts 75 Watt incandescent equivalent 900 lumens (each lamp)

  • Color Temperature: 2700K -or- 3000K 80+ CRI

  • Base: Bayonet, double-contact base, BA15d

  • 120 Volts - Dimmable ETL Approved

  • Note: Lamps are usually spaced approximately 12” apart

  • These LEDs operate on line voltage and NO separate driver or transformer is needed!

JD Krypton lamps (Blocks UV)

  • 20, 40, or 60 Watts (each lamp)

  • Base: Bayonet, double-contact base, BA15d

  • 120 Volts

  • Note: Lamps are usually spaced approximately 12” apart

JD Halogen lamps

  • 50 or 75 Watts (each lamp)

  • Base: Bayonet, double-contact base, BA15d

  • 130 Volts

  • Note: Lamps are usually spaced approximately 12” apart

NOTE: Fixtures are provided with a set of lamps (or - if specified or integral to the fixture’s design - with LEDs) as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.

STANDARD FINISHES

CUSTOM FINISHES

Want a custom color? We offer powder coat finishes from TIGER Drylac in any RAL color to meet your specific requirements. Custom finishes are available for an additional charge and require an 8-10 week lead time. Contact our sales team for details.

DRAWINGS AND FILES
