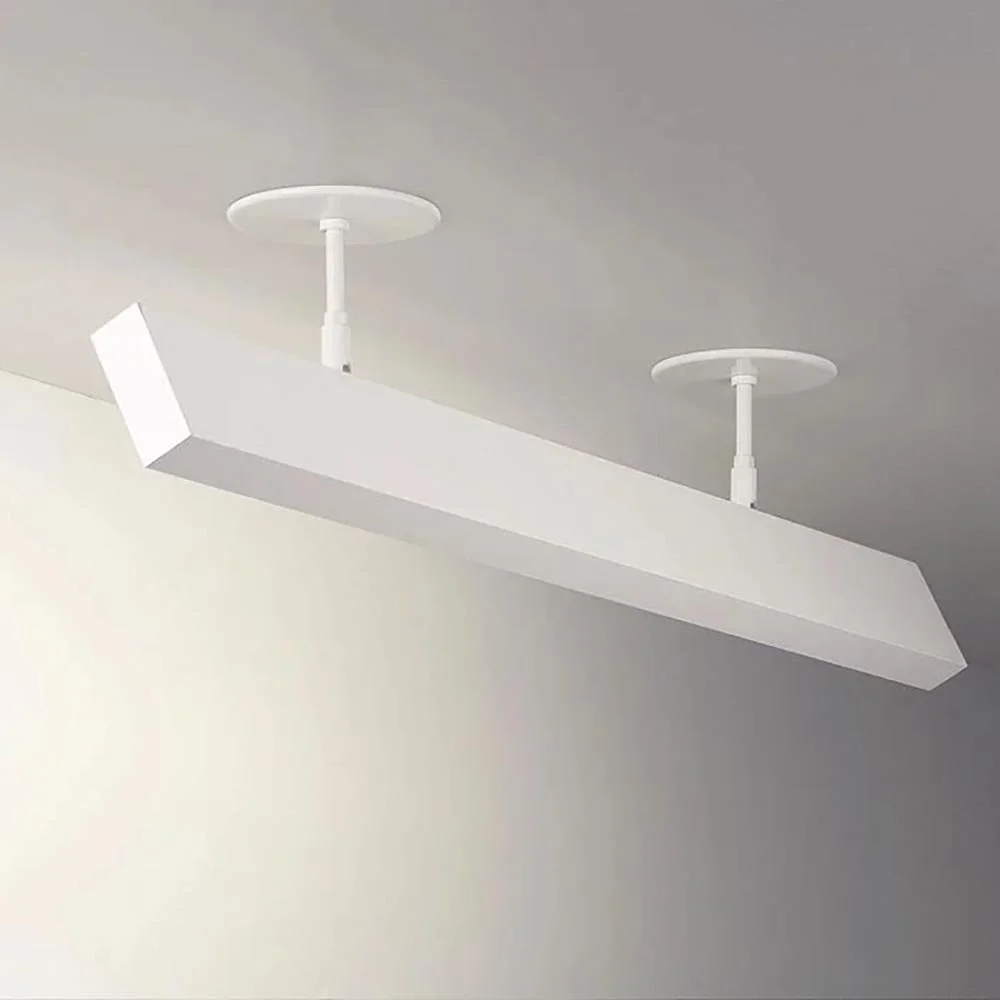

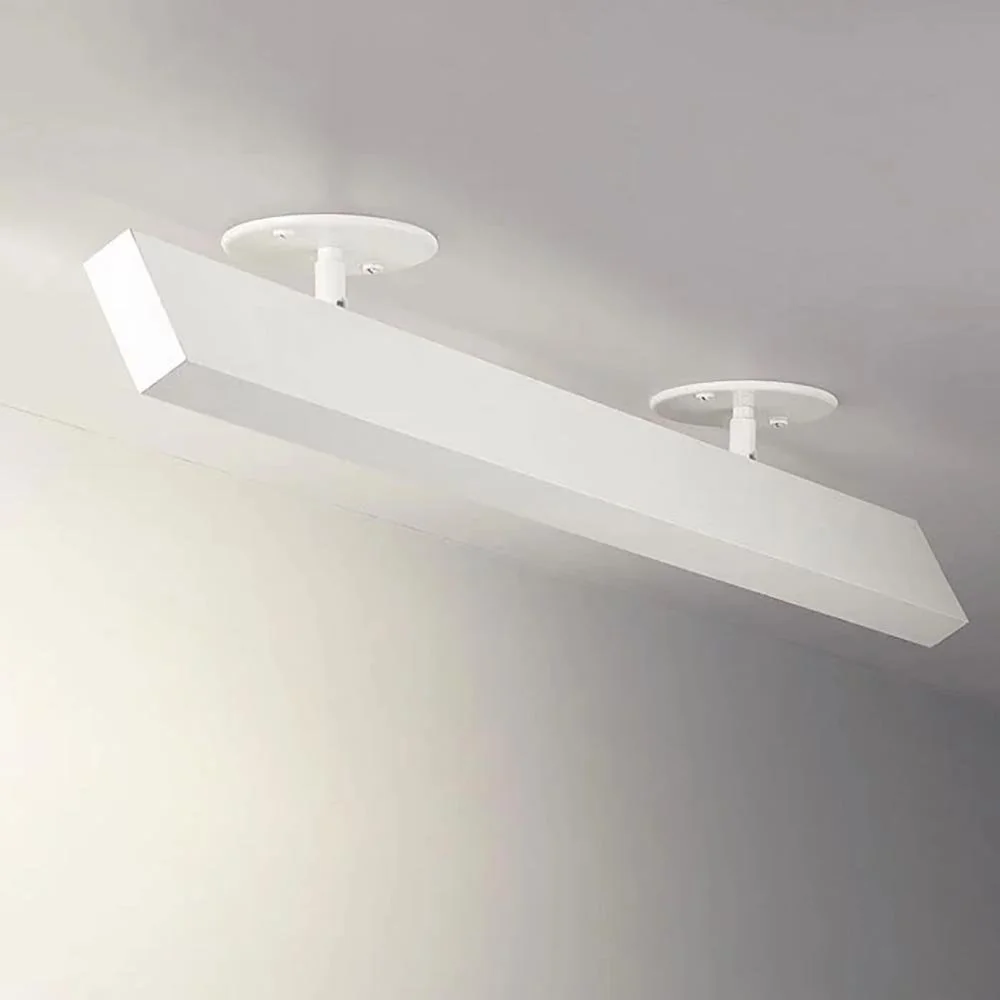

WW04 - LuxLine

DETAILS

Ceiling or Soffit mounted
LuxLine = “Modernist Rectangle” extrusion shape [Consider using our AL03 HRL fixture, when glare might be a concern]
Any length
No transformer or driver necessary
Dimmable
ETL Approved to meet UL Standards

DIMENSIONS

Length:

Any length [fixture must be 12” long minimum]
Please specify in units-of-an-inch [Note: lengths over 12 feet will require a discrete seam]

Drop:

Standard Drops: No stem, swivel only, 2”, 6”, 10”, 16” stem
Custom Drops are available with an up-charge

LIGHT SOURCES

LED lamps (Close to zero UV)

5 Watts 60 Watt incandescent equivalent 700 lumens
6 Watts 75 Watt incandescent equivalent 900 lumens
Color Temperature: 2700K -or- 3000K 80+ CRI
Base: Bayonet, double-contact base, BA15d
120 Volts - Dimmable ETL Approved
Note: Lamps are usually spaced approximately 12” apart
These LEDs operate on line voltage, and NO separate driver or transformer is needed!

JD Halogen lamps

50 or 75 Watts (each lamp)
Base: Bayonet, double-contact base, BA15d
130 Volts
Note: Lamps are usually spaced approximately 12” apart

JD Krypton lamps (Blocks UV)

20, 40, or 60 Watts (each lamp)
Base: Bayonet, double-contact base, BA15d
120 Volts
Note: Lamps are usually spaced approximately 12” apart

LED lamps (Close to zero UV)

5 Watts 60 Watt incandescent equivalent 700 lumens
6 Watts 75 Watt incandescent equivalent 900 lumens
Color Temperature: 2700K -or- 3000K 80+ CRI
Base: Bayonet, double-contact base, BA15d
120 Volts - Dimmable ETL Approved
Note: Lamps are usually spaced approximately 12” apart
These LED’s operate on line voltage, and NO separate driver or transformer is needed!

NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.

STANDARD FINISHES

White (Powder Coat)

Polished Chrome

CUSTOM FINISHES

Want a custom color? We offer powder coat finishes from TIGER Drylac in any RAL color to meet your specific requirements. Custom finishes are available for an additional charge and require an 8-10 week lead time. Contact our sales team for details.

MOUNTING METHODS

Modulightor light fixtures are renowned for their sleek designs and versatile lighting solutions, making them a popular choice for both residential and commercial environments. A key aspect of their adaptability lies in the variety of mounting methods available, which allow these fixtures to seamlessly integrate into diverse architectural settings - both new and existing.

Whether the goal is to achieve a minimalist ceiling installation, highlight architectural features with wall mounting, or incorporate lighting into custom millwork, the right mounting technique plays a crucial role in the overall success of the lighting design. The following options are available for this fixture:

Hard-Wired with a Plate
