WW07 - MiniLux VE

DETAILS

  • Ceiling or Soffit mounted

  • VE = Angled face extrusion shape [Consider using our AL03 HRL fixture when glare might be a concern]

  • Great for use behind soffits, beams, or moldings.

  • Any length

  • No transformer or driver necessary

  • Dimmable

  • ETL Approved to meet UL Standards

DIMENSIONS

Length:

  • Any length [fixture must be 12” long minimum]

  • Please specify in units-of-an-inch [Note: lengths over 12 feet will require a discrete seam]

Drop:

  • This fixture is surface-mounted, and its vertical dimension is approximately 1-1/2”

LIGHT SOURCES

LED lamps (Close to zero UV)

  • 5 Watts 60 Watt incandescent equivalent 700 lumens (each lamp)

  • 6 Watts 75 Watt incandescent equivalent 900 lumens (each lamp)

  • Color Temperature: 2700K -or- 3000K 80+ CRI

  • Base: Bayonet, double-contact base, BA15d

  • 120 Volts - Dimmable ETL Approved

  • Note: Lamps are usually spaced approximately 12” apart

  • These LED’s operate on line voltage, and NO separate driver or transformer is needed!

JD Krypton lamps (Blocks UV)

  • 20, 40, or 60 Watts (each lamp)

  • Base: Bayonet, double-contact base, BA15d

  • 120 Volts

  • Note: Lamps are usually spaced approximately 12” apart

JD Halogen lamps

  • 50 or 75 Watts (each lamp)

  • Base: Bayonet, double-contact base, BA15d

  • 130 Volts

  • Note: Lamps are usually spaced approximately 12” apart

NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.


MOUNTING METHODS

  • MM06A (hardwired, with screws inside extrusion)

  • MM07A (hardwired, with BX / Romex electrical Feed)

STANDARD FINISHES

CUSTOM FINISHES

Want a custom color? We offer powder coat finishes from TIGER Drylac in any RAL color to meet your specific requirements. Custom finishes are available for an additional charge and require an 8-10 week lead time. Contact our sales team for details.

MOUNTING METHODS

Modulightor light fixtures are renowned for their sleek designs and versatile lighting solutions, making them a popular choice for both residential and commercial environments. A key aspect of their adaptability lies in the variety of mounting methods available, which allow these fixtures to seamlessly integrate into diverse architectural settings - both new and existing.

Whether the goal is to achieve a minimalist ceiling installation, highlight architectural features with wall mounting, or incorporate lighting into custom millwork, the right mounting technique plays a crucial role in the overall success of the lighting design. The following options are available for this fixture:

Hard-Wired with a Plate

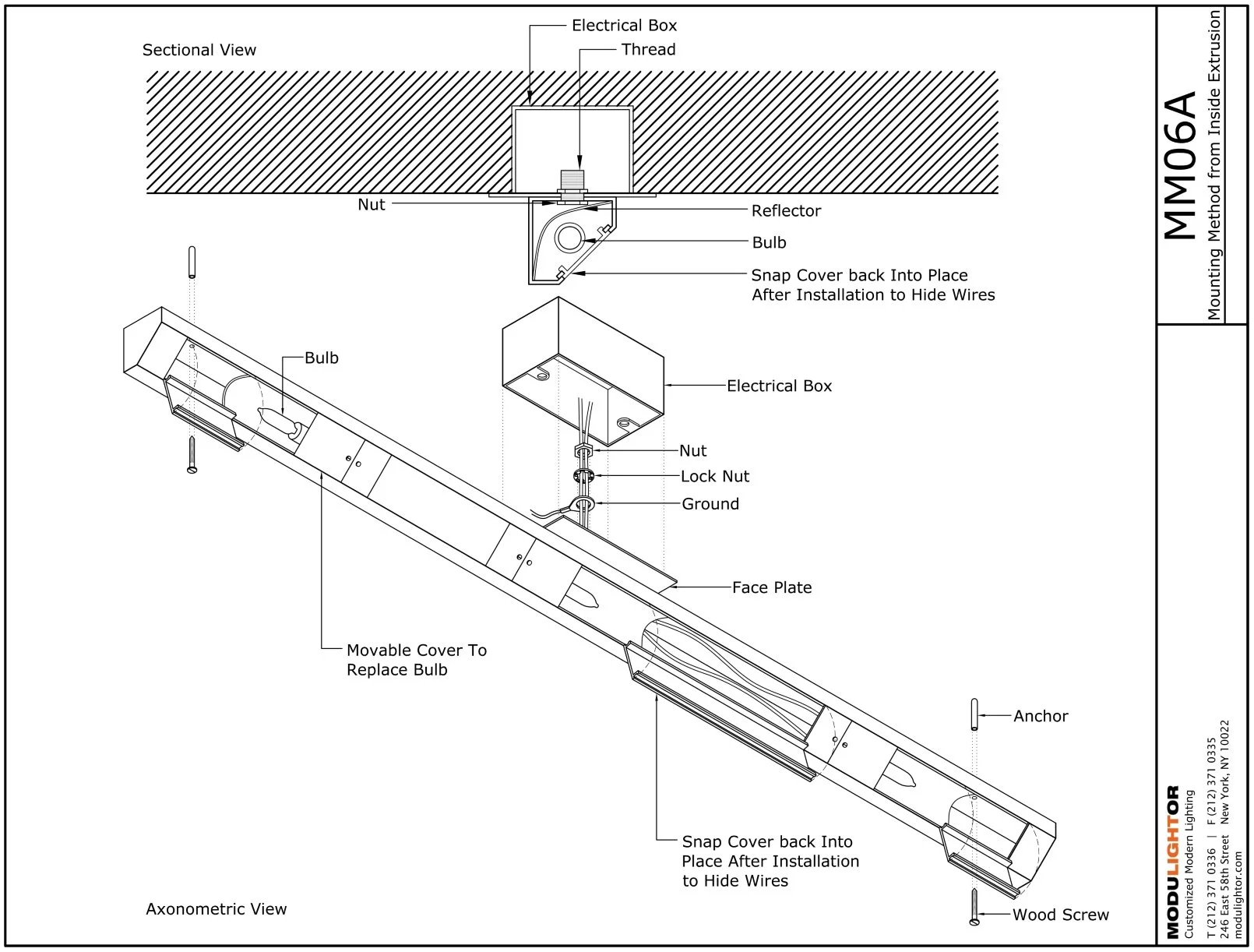

MM06A (hardwired, with screws inside extrusion)

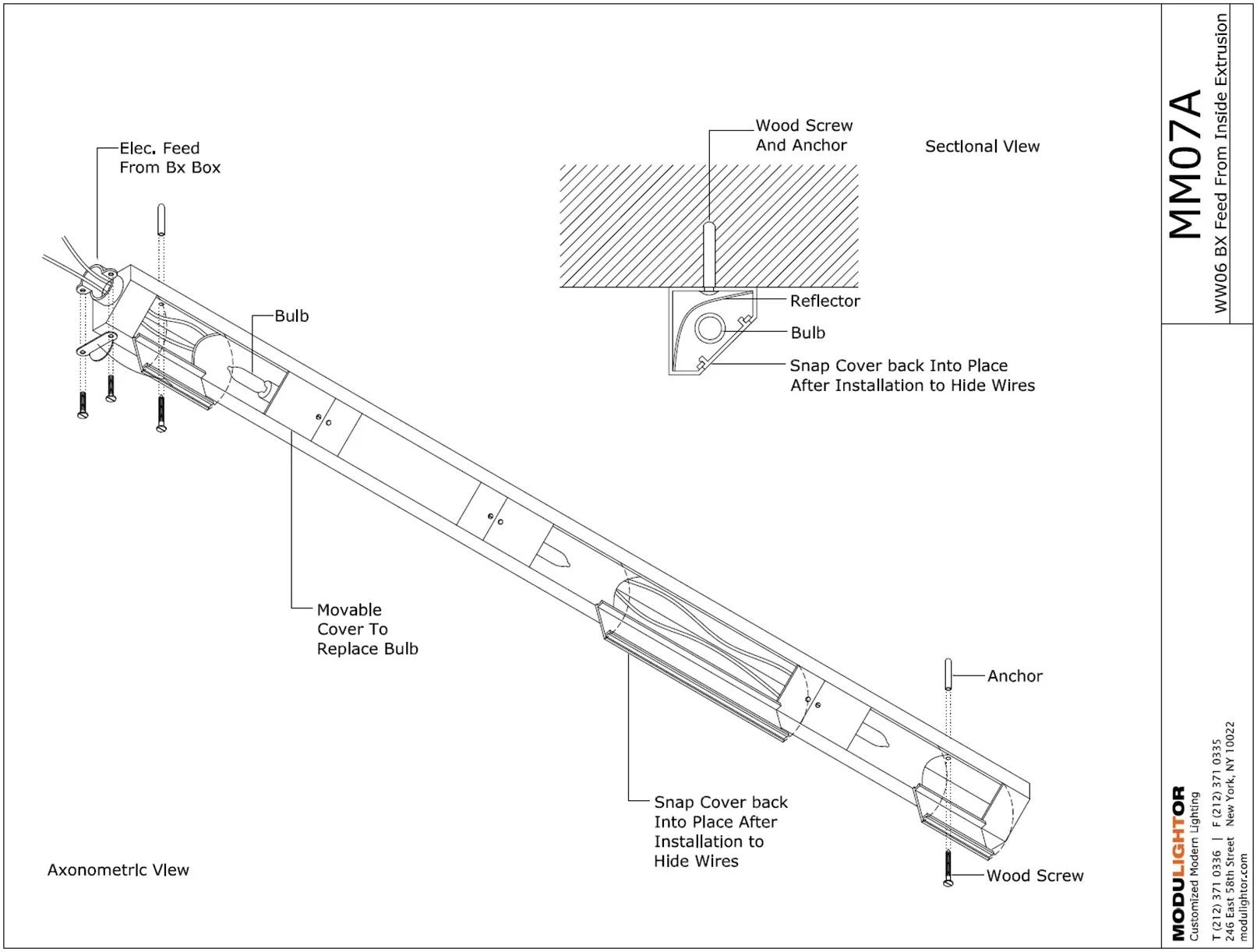

MM07A (hardwired, with BX / Romex electrical Feed)

NOTE: Fixtures will be provided for installation with normal mounting conditions. It is the customer’s responsibility to verify that they have selected a fixture and mounting method which complies with local codes (L.A.H.J.) and that they are installing the fixture in an approved manner.
