WW01 - Minilux SQ

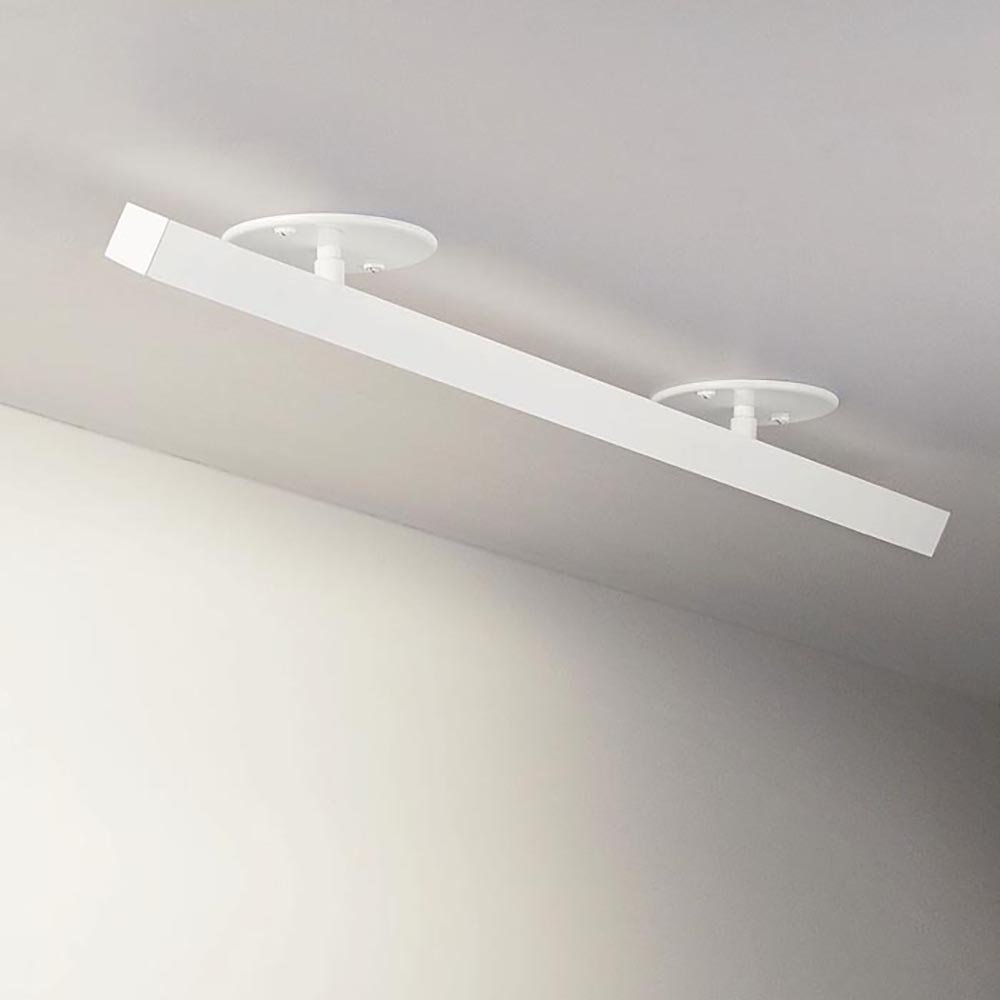

CEILING OR SOFFIT-MOUNTED
Minilux SQ = “Square” extrusion shape [Consider specifying the WW03 when glare may be a concern]
Any length [Fixtures longer than 12 feet will require a discrete seam]
No transformer or driver necessary
Dimmable
ETL Approved to meet UL Standards
SIZES
Length:
Any length
Please specify in units-of-an-inch [Note: lengths over 12 feet will require a discrete seam]

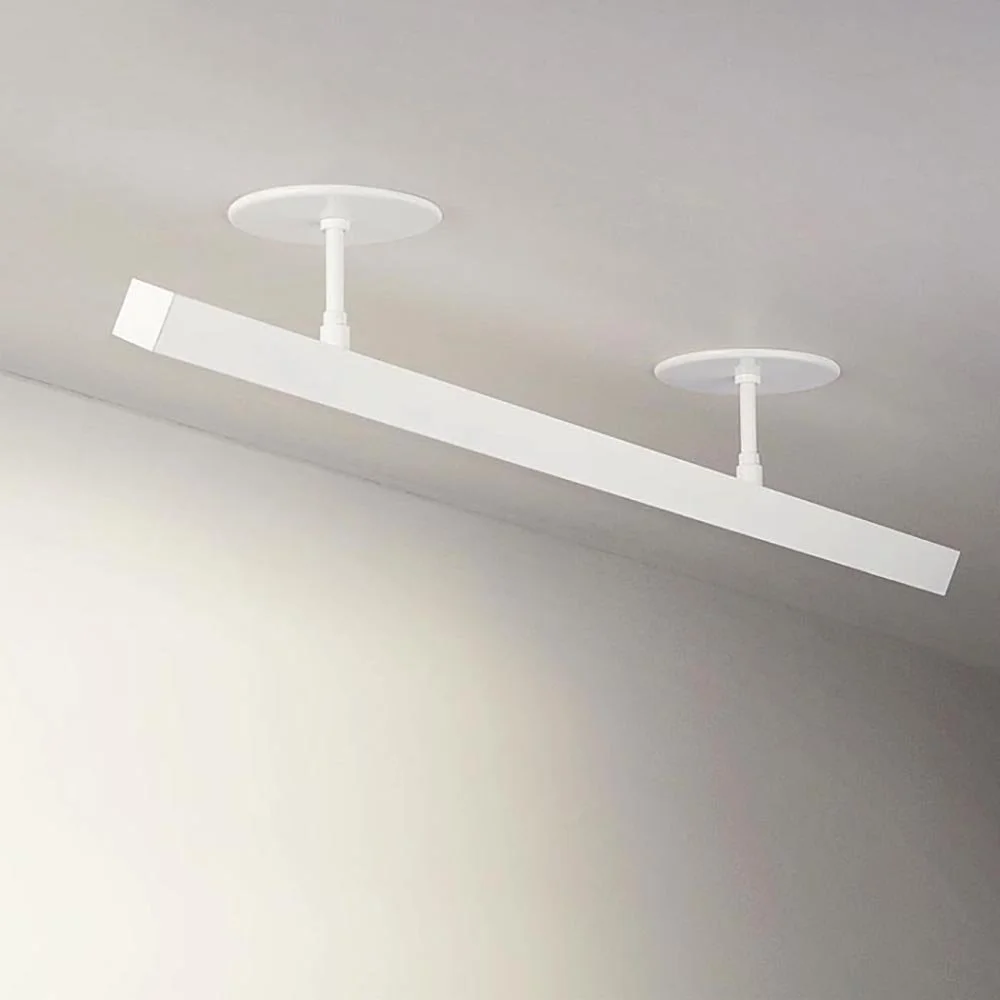

Drop:
Standard Drops: No stem, swivel only, 2”, 6”, 10”, 16’ stem
Custom Drops are available with an up-charge
LIGHT SOURCES
LED lamps (Close to zero UV)
6 Watts 75 Watt incandescent equivalent 900 lumens (each lamp)
Color Temperature: 2700K -or- 3000K 80+ CRI
Base: Bayonet, double-contact base, BA15d
120 Volts - Dimmable ETL Approved
Note: Lamps are usually spaced approximately 12” apart
These LED’s operate on line voltage, and NO separate driver or transformer is needed!
JD Krypton lamps (Blocks UV)
20, 40, or 60 Watts (each lamp)
Base: Bayonet, double-contact base, BA15d
120 Volts
Note: Lamps are usually spaced approximately 12” apart
JD Halogen lamps
50 or 75 Watts (each lamp)
Base: Bayonet, double-contact base, BA15d
130 Volts
Note: Lamps are usually spaced approximately 12” apart
NOTE: Fixtures are provided with a set of lamps (or - if specified or integral to the fixture’s design - with LEDs) as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (hardwired, with screws visible)
MM01B (hardwired, with No screws visible) – the most typically specified mounting
STANDARD FINISHES
CUSTOM FINISHES
Want a custom color? We offer powder coat finishes from TIGER Drylac in any RAL color to meet your specific requirements. Custom finishes are available for an additional charge and require an 8-10 week lead time. Contact our sales team for details.
DRAWINGS AND FILES
