VL115 - Shilo I Minilux

DETAILS

  • Wall or Mirror Mounted Vanity Light

  • SHILO frosted glass, cup-shaped “heads”

  • The SHILO frosted glass cups allow the bright light to diffuse, for perfect vanity lighting

  • Minilux SQ = our approximately “SQuare” extrusion shape

  • No transformer necessary

  • Dimmable

DIMENSIONS

Length:

  • Any length [fixture must be 12” long minimum]

  • Please specify in units-of-an-inch [lengths over 12 feet will require a discreet seam]

Projection:

  • Approximately 5-1/8”

Glass Shade:

  • Each glass shade cup-like shade is approximately 4-1/2 wide x 1-1/2” high and 4-3/8” deep (front to back)

LIGHT SOURCES

JCD Halogen lamps

  • Base: Bi-pin, GY6.35

  • 120 Volts

  • 50 or 75 Watts (each lamp)

  • No transformer necessary

JD Halogen lamps

  • Base: Bayonet, double-contact base, BA15d

  • 130 Volts

  • 50 or 75 Watts (each lamp)

  • No transformer necessary

JD Krypton lamps (Blocks UV)

  • Base: Bayonet, double-contact base, BA15d

  • 120 Volts

  • 20, 40, or 60 Watts (each lamp)

  • No transformer necessary

LED lamps (Close to zero UV)

  • Base: Bayonet, double-contact base, BA15d

  • 120 Volts - Dimmable

  • 5 Watts 60 Watts incandescent equivalent (each lamp)

  • LEDs operate on line voltage, and no separate driver or transformer is needed

NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.

STANDARD FINISHES

CUSTOM FINISHES

Want a custom color? We offer powder coat finishes from TIGER Drylac in any RAL color to meet your specific requirements. Custom finishes are available for an additional charge and require an 8-10 week lead time. Contact our sales team for details.

MOUNTING METHODS

Modulightor light fixtures are renowned for their sleek designs and versatile lighting solutions, making them a popular choice for both residential and commercial environments. A key aspect of their adaptability lies in the variety of mounting methods available, which allow these fixtures to seamlessly integrate into diverse architectural settings - both new and existing.

Whether the goal is to achieve a minimalist ceiling installation, highlight architectural features with wall mounting, or incorporate lighting into custom millwork, the right mounting technique plays a crucial role in the overall success of the lighting design. The following options are available for this fixture:

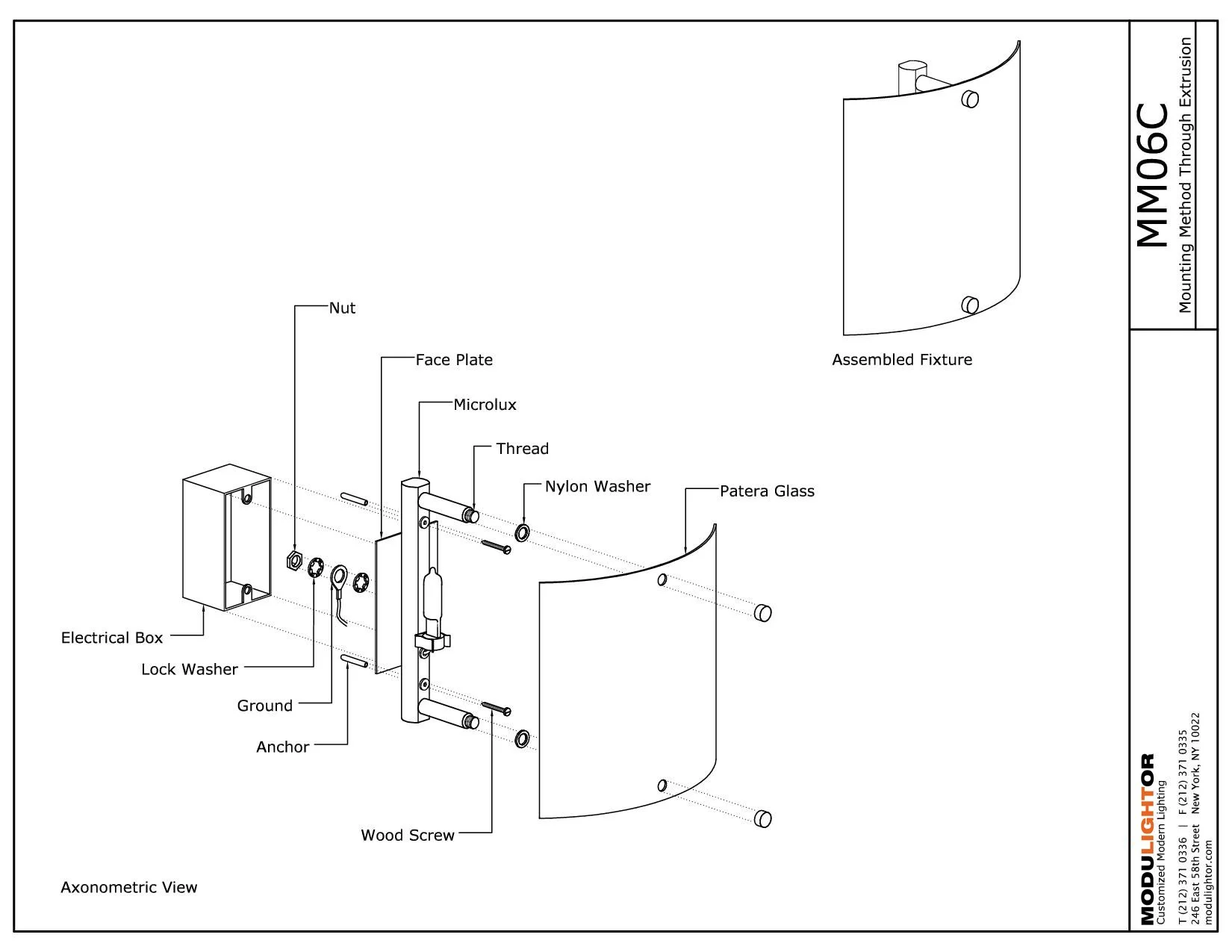

Hard-Wired with Screws Through Extrusion

MM06C (screws through extrusion—with screws visible)



NOTE: Fixtures will be provided for installation with normal mounting conditions. It is the customer’s responsibility to verify that they have selected a fixture and mounting method which complies with local codes (L.A.H.J.) and that they are installing the fixture in an approved manner.

DRAWINGS AND FILES
