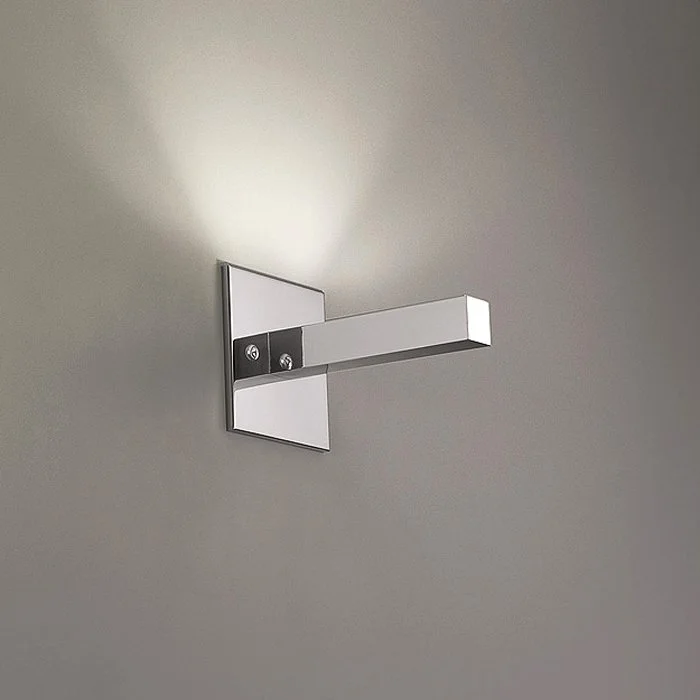

SC01 - Minilux SQ
DETAILS
Wall or Cabinetry Mounted Linear Sconce Uplight
Minilux SQ = approximately “SQuare” extrusion shape
Dimmable
ETL Approved to meet UL Standards
DIMENSIONS
Projection:
6-3/4” is typical – but you can also specify a longer protrusion (up to approx. 12")
LIGHT SOURCES
JD Halogen lamps
50 or 75 Watts (each lamp)
Base: Bayonet, double-contact base, BA15d
130 Volts
No transformer necessary
JD Krypton lamps (Blocks UV)
20, 40, or 60 Watts
Base: Bayonet, double-contact base, BA15d
120 Volts
No transformer necessary
LED lamps (Close to zero UV)
6 Watts 75 Watt incandescent equivalent 900 lumens
Color Temperature: 2700K -or- 3000K 80+ CRI
Base: Bayonet, double-contact base, BA15d
120 Volts - Dimmable ETL Approved
These LEDs operate on line voltage, and no separate driver or transformer is needed.
NOTE: Fixtures are provided with a set of lamps (or - if specified or integral to the fixture’s design - with LEDs) as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
STANDARD FINISHES
CUSTOM FINISHES
Want a custom color? We offer powder coat finishes from TIGER Drylac in any RAL color to meet your specific requirements. Custom finishes are available for an additional charge and require an 8-10 week lead time. Contact our sales team for details.
MOUNTING METHODS
Modulightor light fixtures are renowned for their sleek designs and versatile lighting solutions, making them a popular choice for both residential and commercial environments. A key aspect of their adaptability lies in the variety of mounting methods available, which allow these fixtures to seamlessly integrate into diverse architectural settings - both new and existing.
Whether the goal is to achieve a minimalist ceiling installation, highlight architectural features with wall mounting, or incorporate lighting into custom millwork, the right mounting technique plays a crucial role in the overall success of the lighting design. The following options are available for this fixture:
Hard-Wired with a Plate
MM01A (screws visible)
NOTE: Fixtures will be provided for installation with normal mounting conditions. It is the customer’s responsibility to verify that they have selected a fixture and mounting method which complies with local codes (L.A.H.J.) and that they are installing the fixture in an approved manner.
