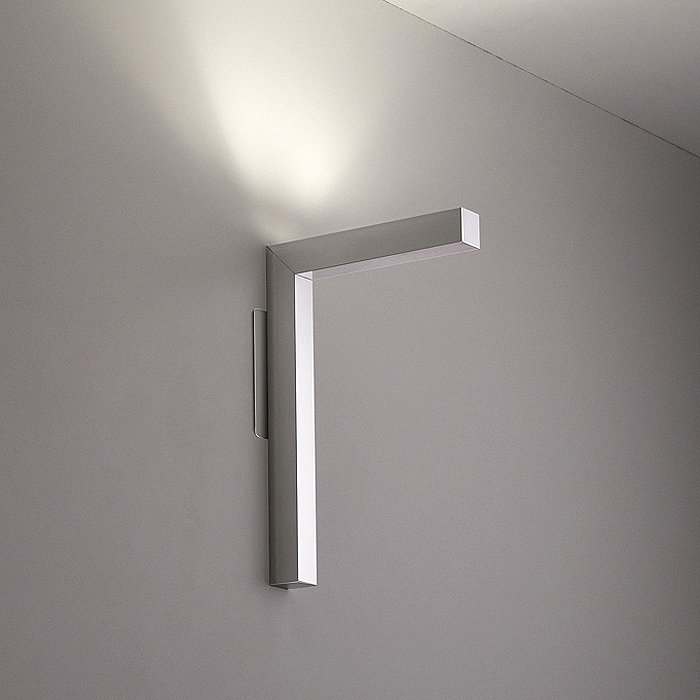

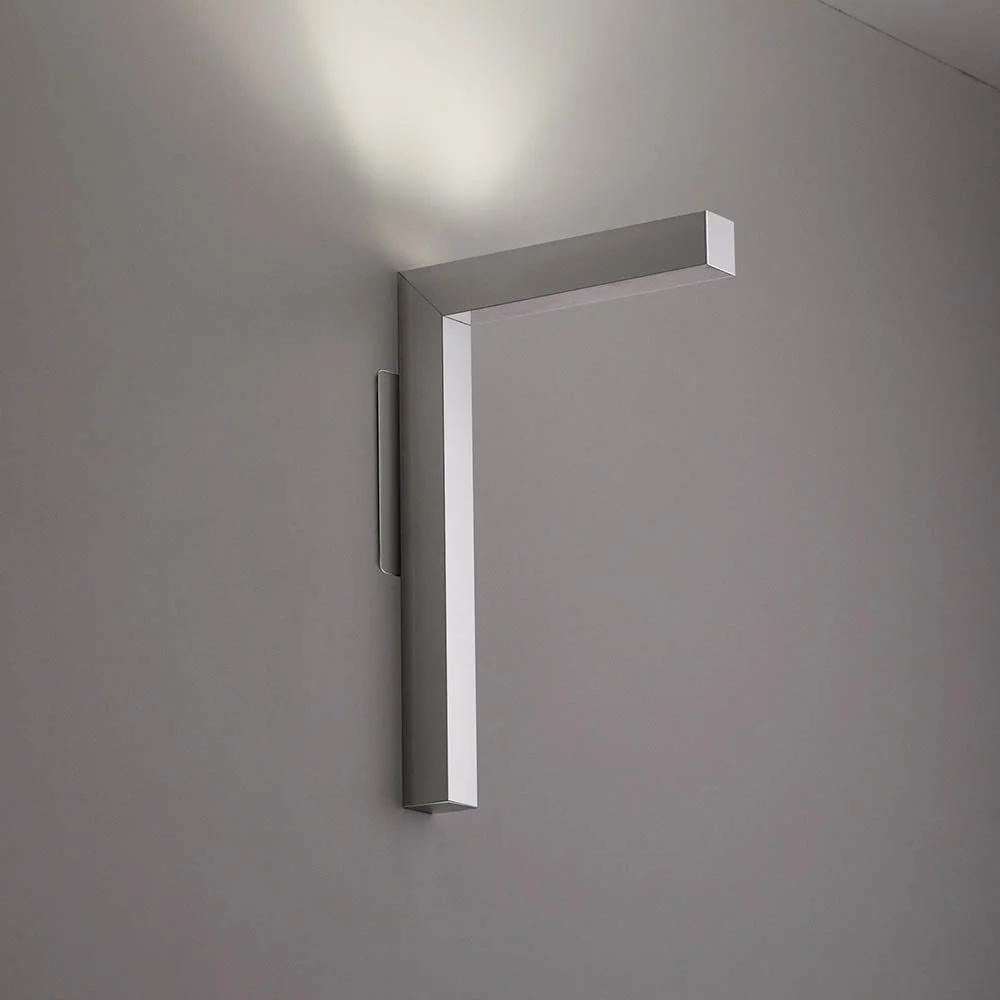

SC21 - Minilux SQ
SCONCE UPLIGHT
Wall or cabinetry mounted
Minilux SQ = our approximately Square extrusion shape
120 Volts, Line Voltage
Dimmable
ETL Approved to meet UL Standards
SIZES
Protrusion: 6-3/4” is typical – but you can also specify a longer protrusion (up to approx. 12")
Height: 12” is typical– but you can also specify a longer height (up to approx. 90")
LIGHT SOURCES - All Line Voltage (No Transformer or Driver needed)
LED lamps (Close to zero UV) Spaced 12” apart typically
120 Volt • 6 Watts (75 Watt incandescent equivalent) • 900 lumens (each lamp)
Color Temperature: 2700K -or- 3000K • 80+ CRI
Base: Bayonet, double-contact base, BA15d
Dimmable, ETL Approved to meet UL Standards
Incandescent JD Krypton lamps (Block UV) Spaced 12” apart typically
130 Volt • 20, 40, or 60 Watts (each lamp)
Base: Bayonet, double-contact base, BA15d
Incandescent JD Halogen lamps Spaced 12” apart typically
130 Volt • 50 Watts (each lamp)
Base: Bayonet, double-contact base, BA15d
NOTE: Fixtures ship with lamps or LED boards in place. It is specifier’s responsibility to verify that selection is compatible with the wiring, power, and controls on-site.
STANDARD FINISHES
CUSTOM FINISHES
For large quantities TIGER Drylac custom powder coat finishes in any RAL color are available for an additional charge and longer lead time. Contact our sales team for details.
MOUNTING METHODS
Modulightor light fixtures are renowned for their sleek designs and versatile lighting solutions, making them a popular choice for both residential and commercial environments. A key aspect of their adaptability lies in the variety of mounting methods available, which allow these fixtures to seamlessly integrate into diverse architectural settings - both new and existing.
Whether the goal is to achieve a minimalist ceiling installation, highlight architectural features with wall mounting, or incorporate lighting into custom millwork, the right mounting technique plays a crucial role in the overall success of the lighting design. The following options are available for this fixture:
Hard-Wired with a Plate
MM01A (screws visible)
NOTE: Fixtures will be provided for installation with normal mounting conditions. It is the customer’s responsibility to verify that they have selected a fixture and mounting method which complies with local codes (L.A.H.J.) and that they are installing the fixture in an approved manner.
