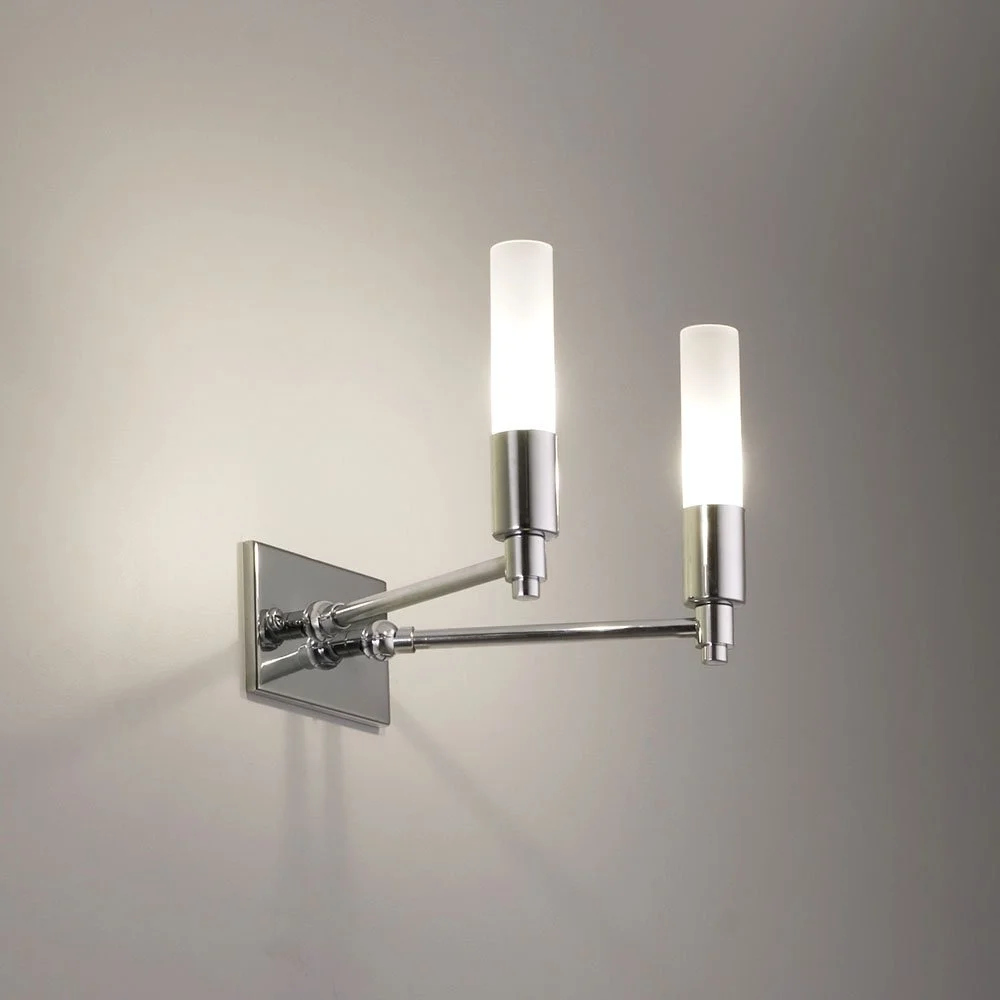

SC113 - Rico 3
DIFFUSED LIGHT SCONCE
Double-light gives abundant illumination
Frosted Cylinders are elegantly slender
Arm angle is adjustable—and may be set on-site
Wall or cabinetry mounted
120 Volt, Line Voltage
Dimmable
SIZES
Protrusion: standard protrusion is 6” [Custom protrusions are available with an upcharge.]
Height: approximately 6-1/2” NOTE: the wall plate extends a bit above the fixture “heads” (see photo)
Rico Glass: the exposed portion of the glass cylinder is approximately 1-1/16” diameter x 3-1/2” high
LIGHT SOURCES
JCD Halogen lamp
Base: Bi-pin, GY6.35
120 Volt
20, 35 or 50 Watts
No transformer necessary
LED lamps may be available — Check with us for availability.
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
STANDARD FINISHES
CUSTOM FINISHES
Want a custom color? We offer powder coat finishes from TIGER Drylac in any RAL color to meet your specific requirements. Custom finishes are available for an additional charge and require an 8-10 week lead time. Contact our sales team for details.
MOUNTING METHODS
Modulightor light fixtures are renowned for their sleek designs and versatile lighting solutions, making them a popular choice for both residential and commercial environments. A key aspect of their adaptability lies in the variety of mounting methods available, which allow these fixtures to seamlessly integrate into diverse architectural settings - both new and existing.
Whether the goal is to achieve a minimalist ceiling installation, highlight architectural features with wall mounting, or incorporate lighting into custom millwork, the right mounting technique plays a crucial role in the overall success of the lighting design. The following options are available for this fixture:
Hard-Wired with a Plate
MM01C (protruding on stems, and hardwired through stems—with center screw [“modern cap”] visible)
NOTE: Fixtures will be provided for installation with normal mounting conditions. It is the customer’s responsibility to verify that they have selected a fixture and mounting method which complies with local codes (L.A.H.J.) and that they are installing the fixture in an approved manner.
