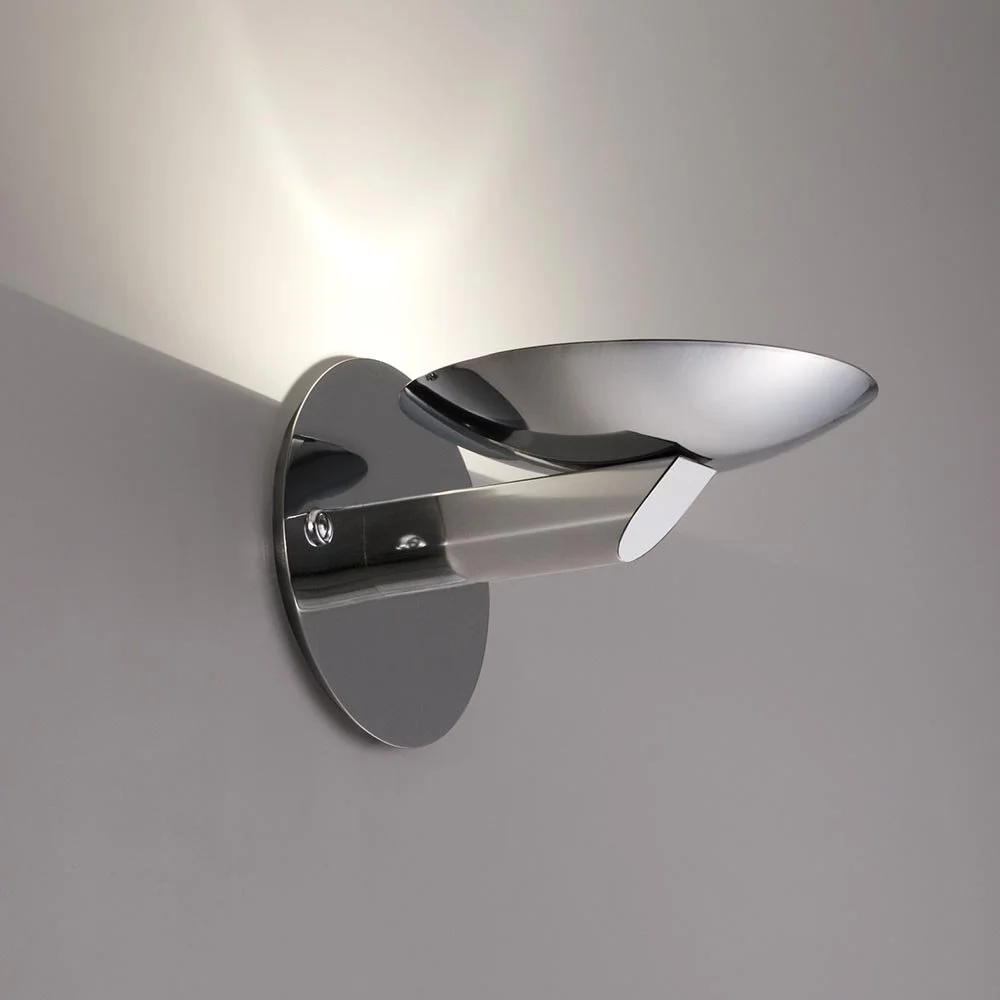

SC95 - Cupola HR
SCONCE UPLIGHT
Wall or cabinetry mounted
Elegantly shallow “domelike” bowl sends light upward
Arm is Minilux HR = our approximately “Half Round” extrusion shape
120 Volt, Line Voltage
Dimmable
ETL Approved to meet UL Standards
SIZES
Protrusion: approx. 8” is typical – but you can also specify a longer protrusion (up to approx. 12")
Width: approximately 6-1/2”
Height: approx. 2-3/8” (the height of protruding component); but the height of the plate (at the wall) will depend on the shape and orientation of the plate that is chosen
LIGHT SOURCES
J Halogen
Base: T3, Double-ended
120 Volts
150 Watts (each lamp)
No transformer necessary
LED lamps may be available — Check with us for availability.
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
STANDARD FINISHES
CUSTOM FINISHES
Want a custom color? We offer powder coat finishes from TIGER Drylac in any RAL color to meet your specific requirements. Custom finishes are available for an additional charge and require an 8-10 week lead time. Contact our sales team for details.
MOUNTING METHODS
Modulightor light fixtures are renowned for their sleek designs and versatile lighting solutions, making them a popular choice for both residential and commercial environments. A key aspect of their adaptability lies in the variety of mounting methods available, which allow these fixtures to seamlessly integrate into diverse architectural settings - both new and existing.
Whether the goal is to achieve a minimalist ceiling installation, highlight architectural features with wall mounting, or incorporate lighting into custom millwork, the right mounting technique plays a crucial role in the overall success of the lighting design. The following options are available for this fixture:
Hard-Wired with a Plate
MM01A (screws visible)
NOTE: Fixtures will be provided for installation with normal mounting conditions. It is the customer’s responsibility to verify that they have selected a fixture and mounting method which complies with local codes (L.A.H.J.) and that they are installing the fixture in an approved manner.
DOWNLOADS
