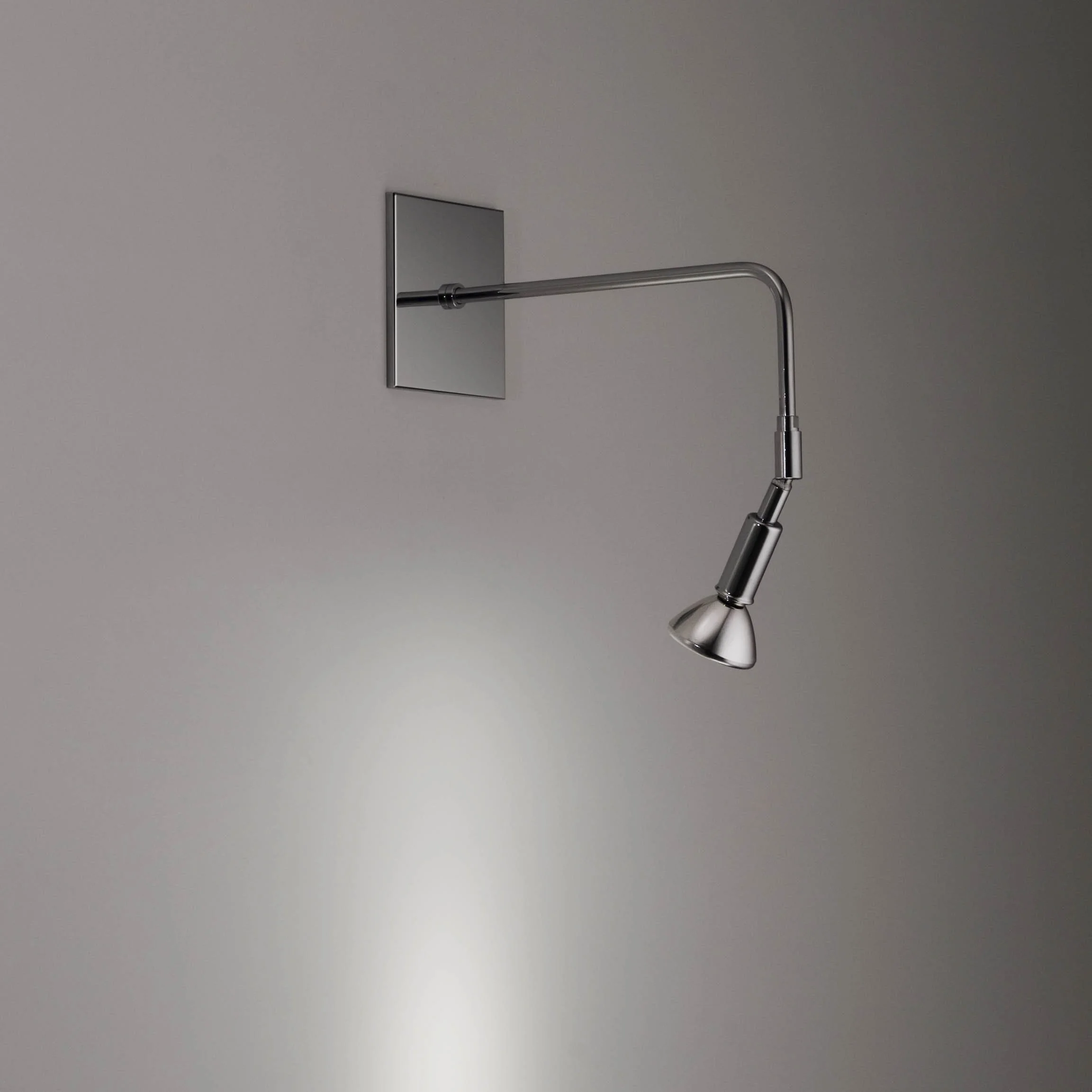

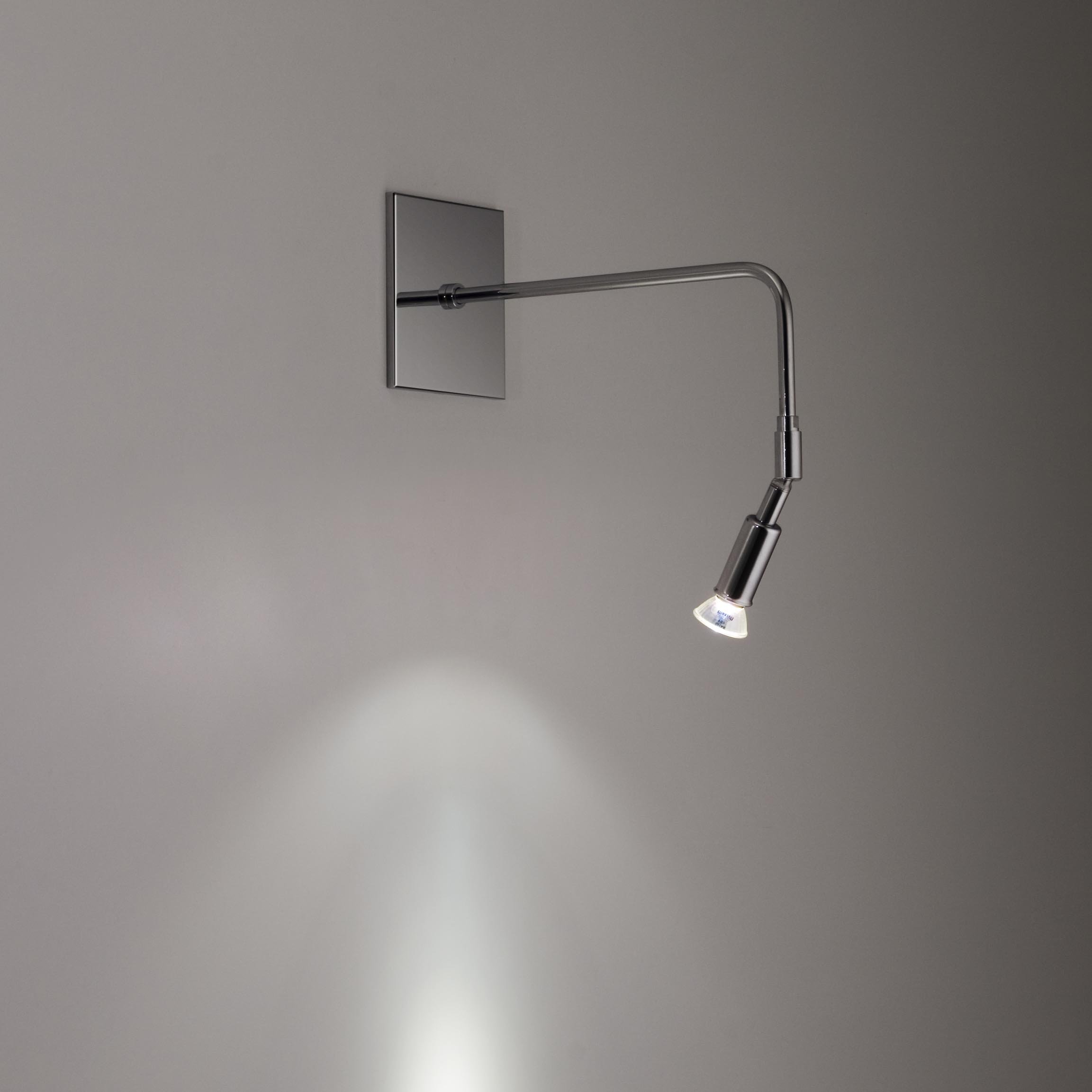

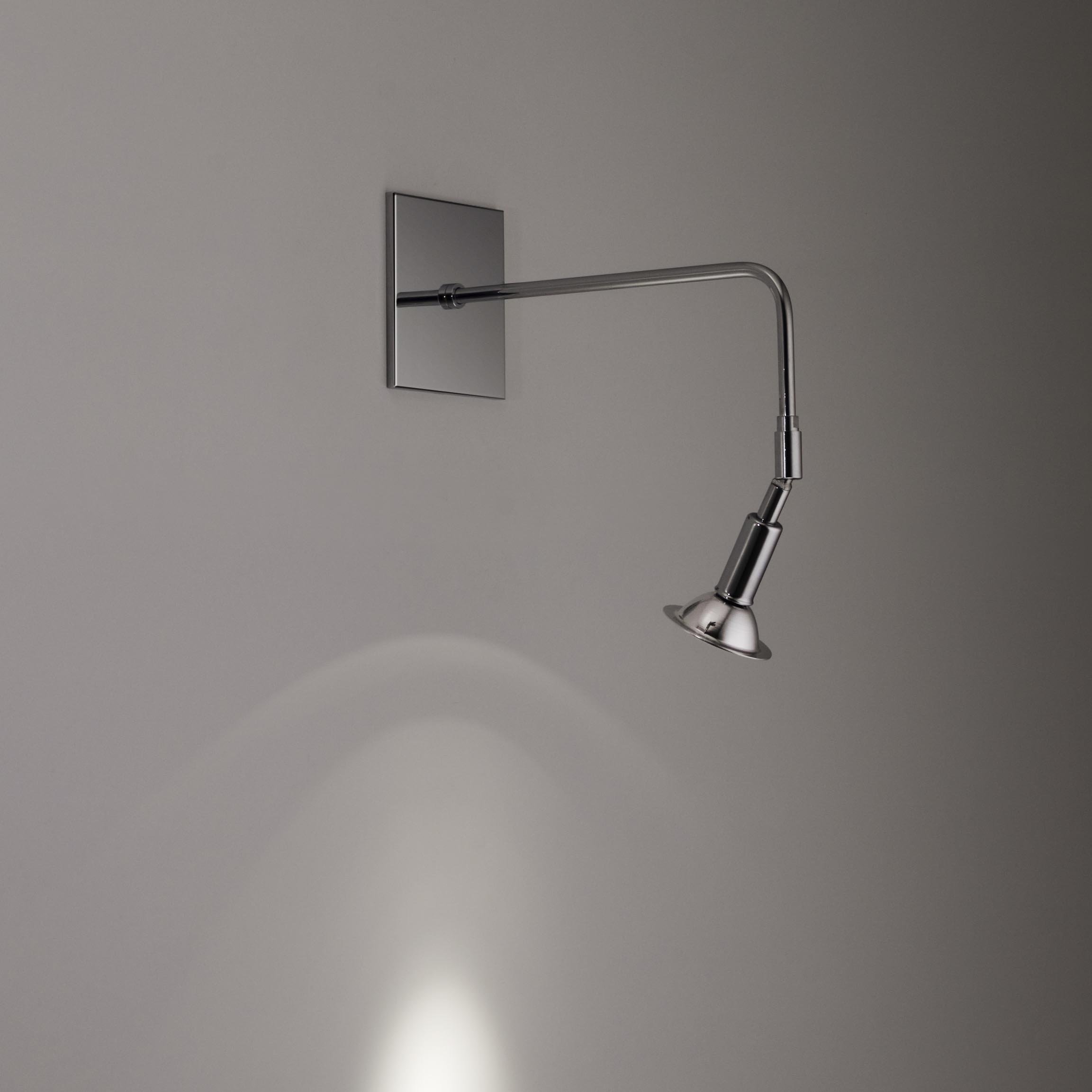

SC75 - Low Voltage A
DIRECTIONAL SPOT-LIGHT
SIZES
Width: Width will vary with the lamp that is specified. [The width of the plate will depend on the plate that is specified.]
Protrusion: protrusions dimension will depend on the actual diameter of the lamp that is specified to go in the fixture— But here are some standard protrusions that are useful averages: approximately 7-1/2”, 11-1/2”, and 17-1/2”
LIGHT SOURCES
In open top of fixture:
Halogen lamp
Base: Bayonet, Double-Contact
PH20 (Philips “Halotone” Aluminum Reflector Lamp)
12Volts
20 Watts
Transformer necessary
Halogen lamp
Base: Bi-pin
MR-16
12 Volts
50 Watts
Transformer necessary
Halogen lamp
Base: GU-10
MR-11
12 Volts
35 Watts
Transformer necessary
Halogen lamp
AR70
Base: Bayonet, Double-Contact
12 Volts
20 or 50 Watts (each lamp)
Transformer necessary
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
STANDARD FINISHES
CUSTOM FINISHES
Want a custom color? We offer powder coat finishes from TIGER Drylac in any RAL color to meet your specific requirements. Custom finishes are available for an additional charge and require an 8-10 week lead time. Contact our sales team for details.
MOUNTING METHODS
Modulightor light fixtures are renowned for their sleek designs and versatile lighting solutions, making them a popular choice for both residential and commercial environments. A key aspect of their adaptability lies in the variety of mounting methods available, which allow these fixtures to seamlessly integrate into diverse architectural settings - both new and existing.
Whether the goal is to achieve a minimalist ceiling installation, highlight architectural features with wall mounting, or incorporate lighting into custom millwork, the right mounting technique plays a crucial role in the overall success of the lighting design. The following options are available for this fixture:
Hard-Wired with a Plate
MM01A (screws visible)
MM01B (no screws visible) – the most specified mounting
NOTE: Fixtures will be provided for installation with normal mounting conditions. It is the customer’s responsibility to verify that they have selected a fixture and mounting method which complies with local codes (L.A.H.J.) and that they are installing the fixture in an approved manner.
