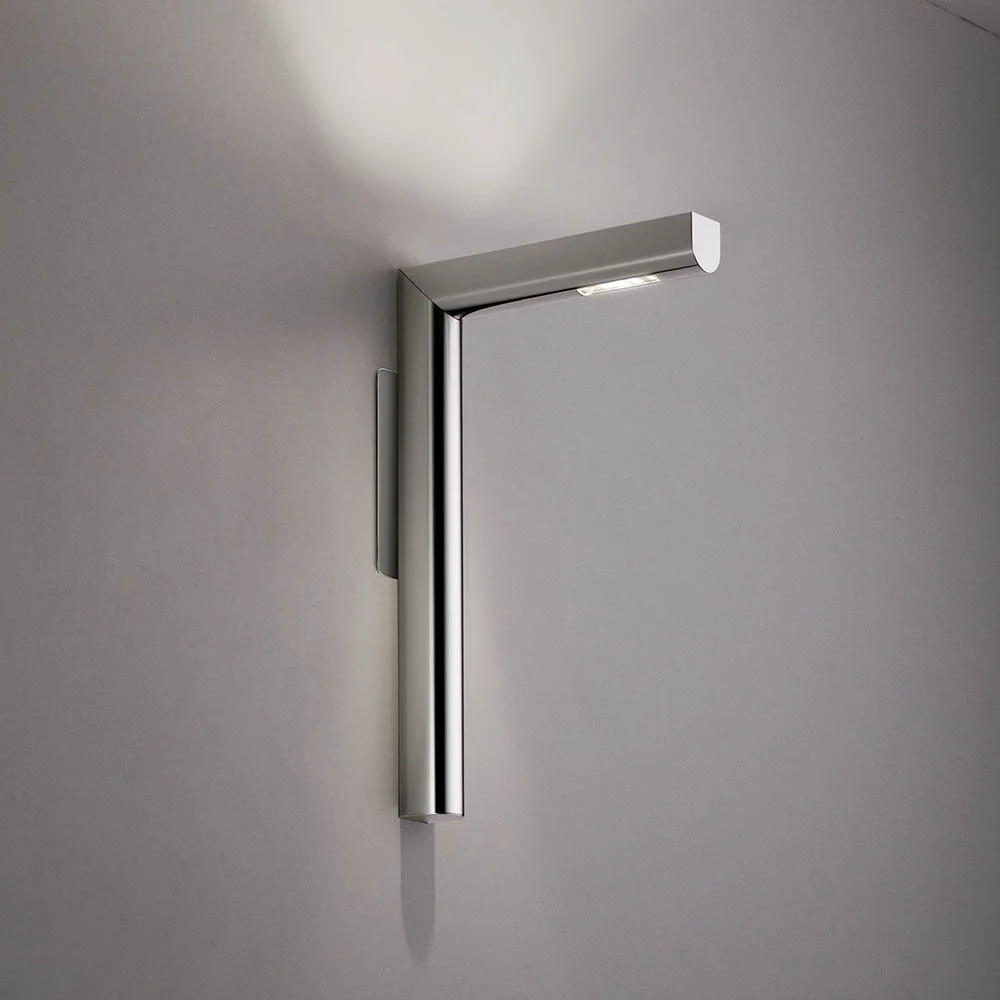

polished chrome "L" shaped sconce with Up+Down lighting


SC32 - Minilux HR Up+Down

SCONCE UP&DOWN LIGHT

  • Wall or cabinetry mounted

  • Minilux HR = our approximately Half Round extrusion shape

  • 120 Volts, Line Voltage

  • Dimmable

  • ETL Approved to meet UL Standards

SIZES

Protrusion: 6-3/4” is typical – but you can also specify a longer protrusion (up to approx. 12")

Height: 12” is typical– but you can also specify a longer height (up to approx. 90")

LIGHT SOURCES - All Line Voltage (No Transformer or Driver needed)

LED lamps (Close to zero UV) Spaced 12” apart typically

  • 120 Volt • 6 Watts (75 Watt incandescent equivalent) • 900 lumens (each lamp)

  • Color Temperature: 2700K -or- 3000K • 80+ CRI

  • Base: Bayonet, double-contact base, BA15d

  • Dimmable, ETL Approved to meet UL Standards

Incandescent JD Krypton lamps (Block UV) Spaced 12” apart typically

  • 130 Volt • 20, 40, or 60 Watts (each lamp)

  • Base: Bayonet, double-contact base, BA15d

Incandescent JD Halogen lamps Spaced 12” apart typically

  • 130 Volt • 50 Watts (each lamp)

  • Base: Bayonet, double-contact base, BA15d

NOTE: Fixtures ship with lamps or LED boards in place. It is specifier’s responsibility to verify that selection is compatible with the wiring, power, and controls on-site.

AVAILABLE FINISHES

CUSTOM FINISHES

For large quantities TIGER Drylac custom powder coat finishes in any RAL color are available for an additional charge and longer lead time. Contact our sales team for details.


MOUNTING METHODS

Modulightor light fixtures are renowned for their sleek designs and versatile lighting solutions, making them a popular choice for both residential and commercial environments. A key aspect of their adaptability lies in the variety of mounting methods available, which allow these fixtures to seamlessly integrate into diverse architectural settings - both new and existing.

Whether the goal is to achieve a minimalist ceiling installation, highlight architectural features with wall mounting, or incorporate lighting into custom millwork, the right mounting technique plays a crucial role in the overall success of the lighting design. The following options are available for this fixture:

Hard-Wired with a Plate

MM01A (screws visible)



NOTE: Fixtures will be provided for installation with normal mounting conditions. It is the customer’s responsibility to verify that they have selected a fixture and mounting method which complies with local codes (L.A.H.J.) and that they are installing the fixture in an approved manner.
